The best trailer hitch ball mounts for towing are the ones that match your receiver tube, your coupler bore and the tongue weight your trailer actually puts on the hitch. Get any of those three wrong and the trailer sits nose-high, the coupler will not latch, or you are carrying a load the mount was never rated for.
We spent weeks reading spec sheets, load ratings and thousands of owner reviews on conventional ball mounts, adjustable mounts, tri-ball mounts and drop mounts, then sorted them by the job each one does well. What we found is that there is no single best trailer hitch ball mount for everyone, but there are clear winners once you sort by receiver size, ball diameter and how much drop or rise your trailer needs.
Everything below is written for people who tow rather than sell hardware. We explain what the numbers mean, where owners report real problems, and which mount to pick for a boat trailer, a travel trailer, a utility trailer or a dump trailer. Our 9 Best Telescope Mounts for Astrophotography Guide follows the same rule: match the mount to the gear, then stop worrying about it.
Table of Contents
- What Is a Trailer Hitch Ball Mount?
- Top 3 Trailer Hitch Ball Mounts (October 2026)
- All 12 Picks for Best Trailer Hitch Ball Mounts for Towing (October 2026)
- 1. MaxxHaul 70067 Adjustable Ball Mount – Best Overall for Leveling a Trailer
- 2. CURT 45900 Adjustable Dual-Ball Channel Mount – Most Versatile for Heavy Towing
- 3. CURT 45056 Loaded Ball Mount – Best Value Fixed 4-Inch Drop
- 4. B&W Tow & Stow TS10048B – Best Tri-Ball for Multi-Trailer Households
- 5. MaxxHaul 70270 Triple Ball Mount – Best Budget Tri-Ball
- 6. Towever 84180 Tri-Ball with Tow Hook – Best for Utility Trailers and Recovery Work
- 7. XPE 2220-3B Tri-Ball with Hook – Best All-Round Tri-Ball

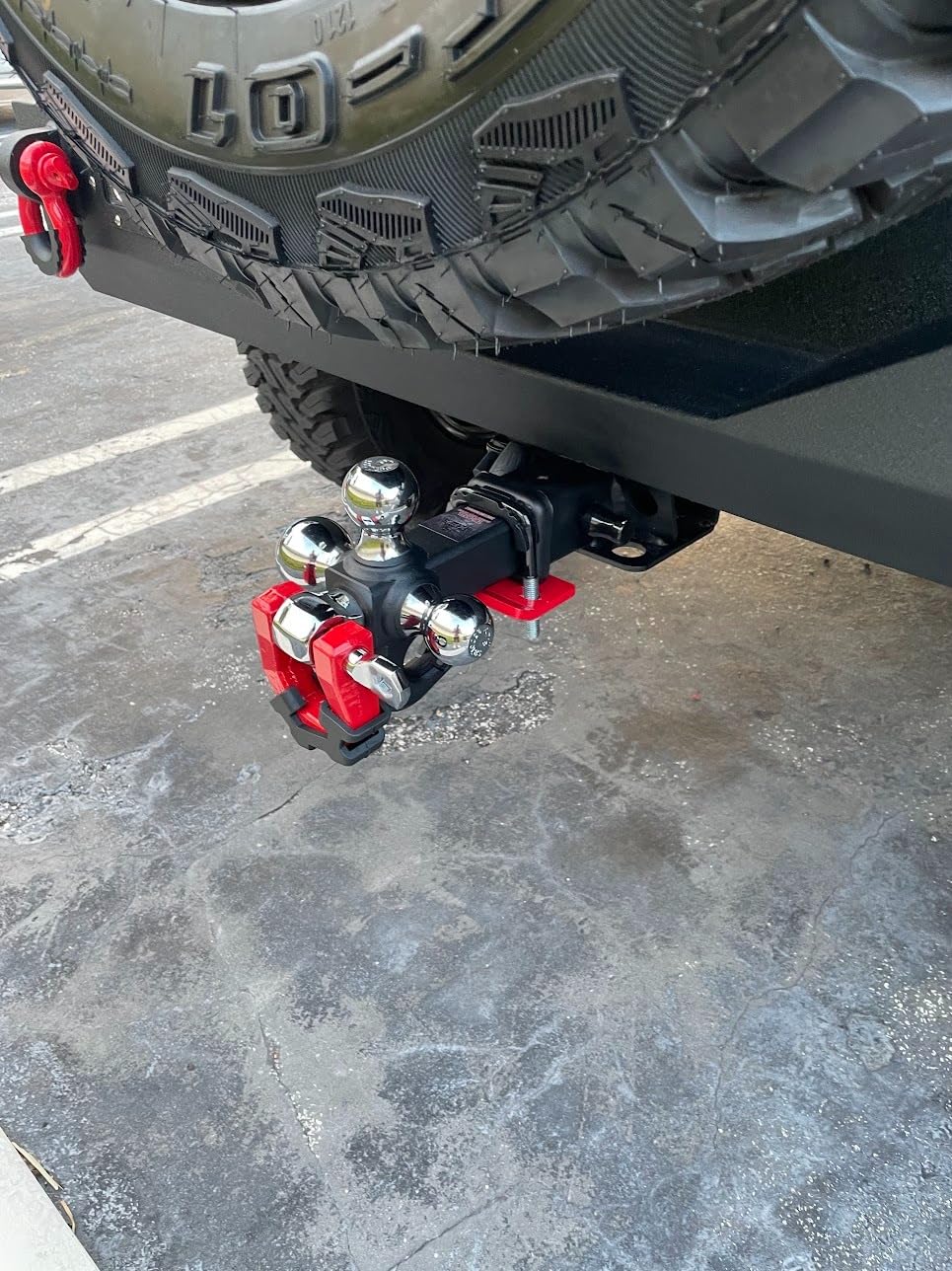

- 8. TOPTOW 64063 Tri-Ball with Swivel Shackle – Best for Recovery Gear and Off-Road Work
- 9. REYSUN 864011 Forged Tri-Ball – Best When You Want the Pin Included

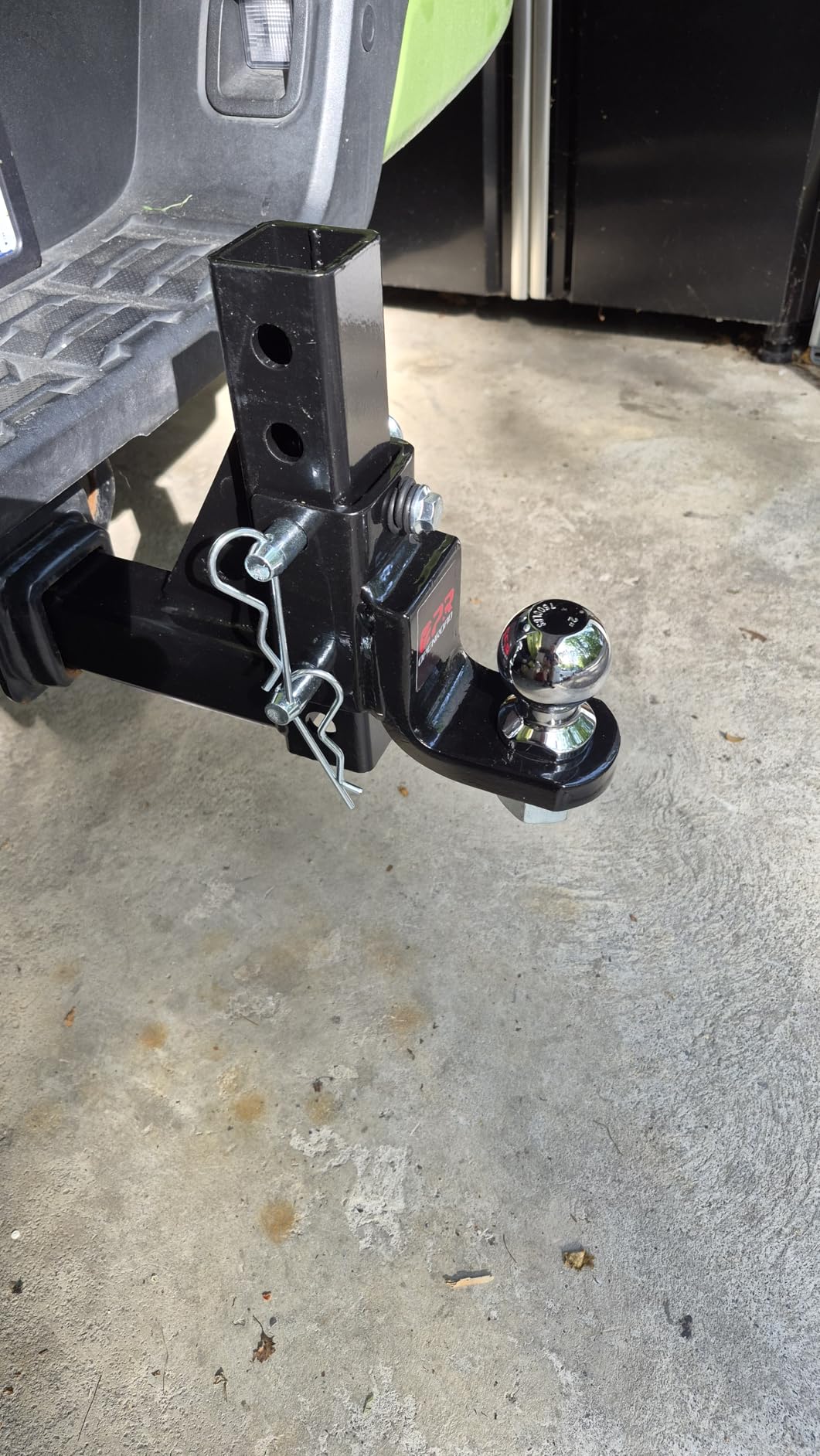

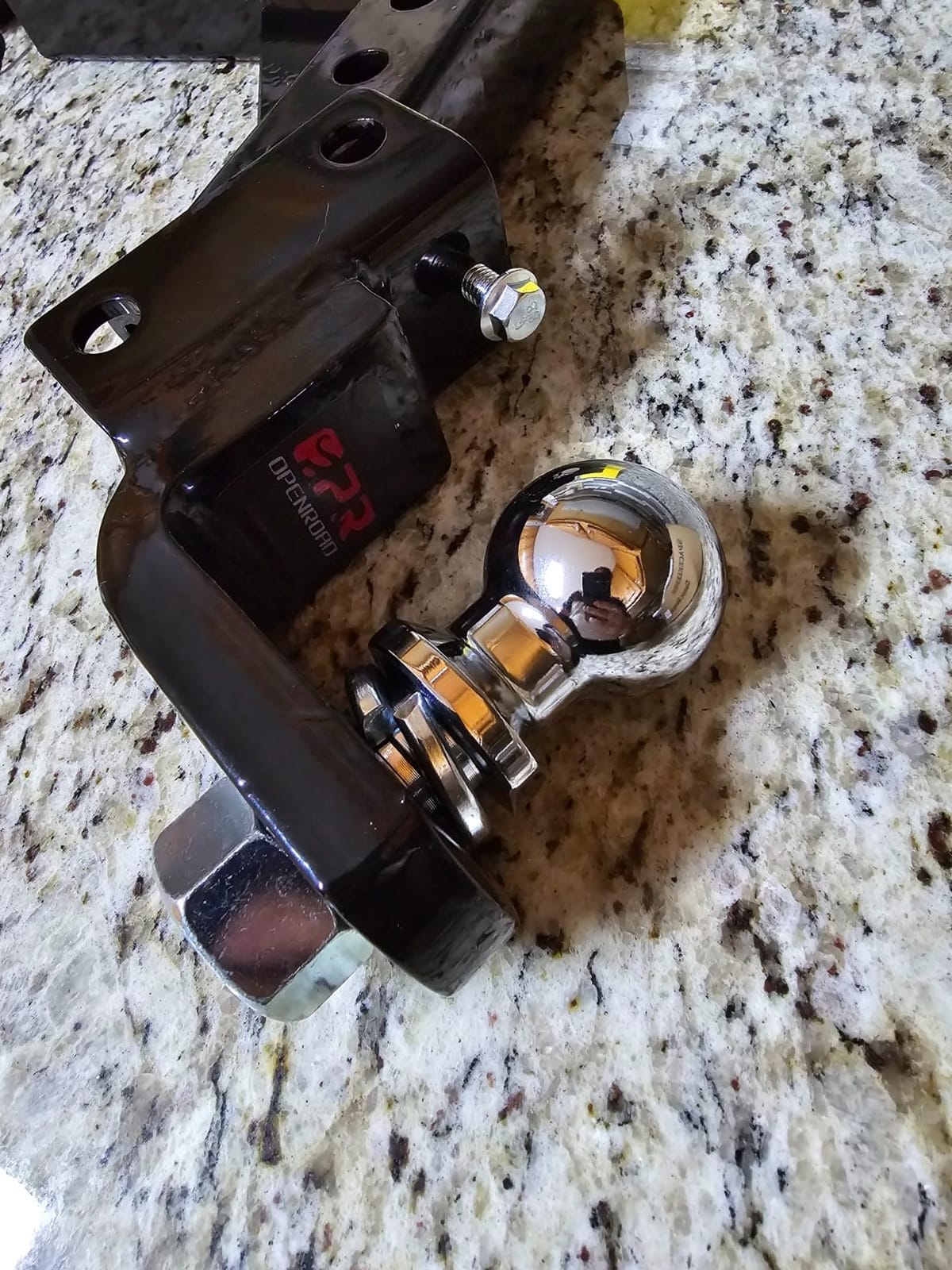

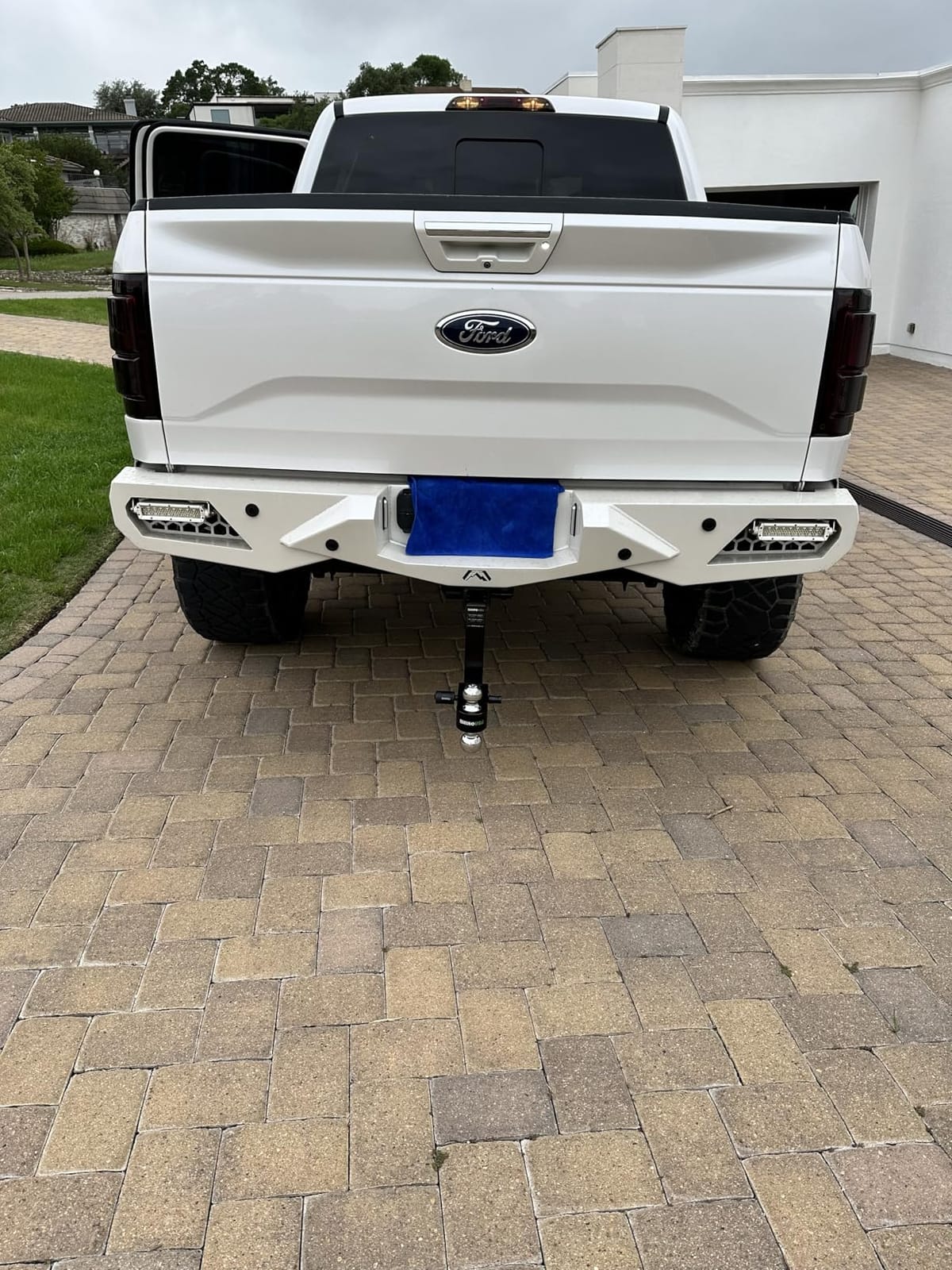

- 10. OPENROAD TH-003 Adjustable Ball Mount – Best for Large Drop or Rise
- 11. Rhino USA HITCH DROP Adjustable Mount – Best Aluminum Mount for Heavy Trailers
- 12. CURT 45030 Class III Ball Mount – Best Standard Low-Profile Mount

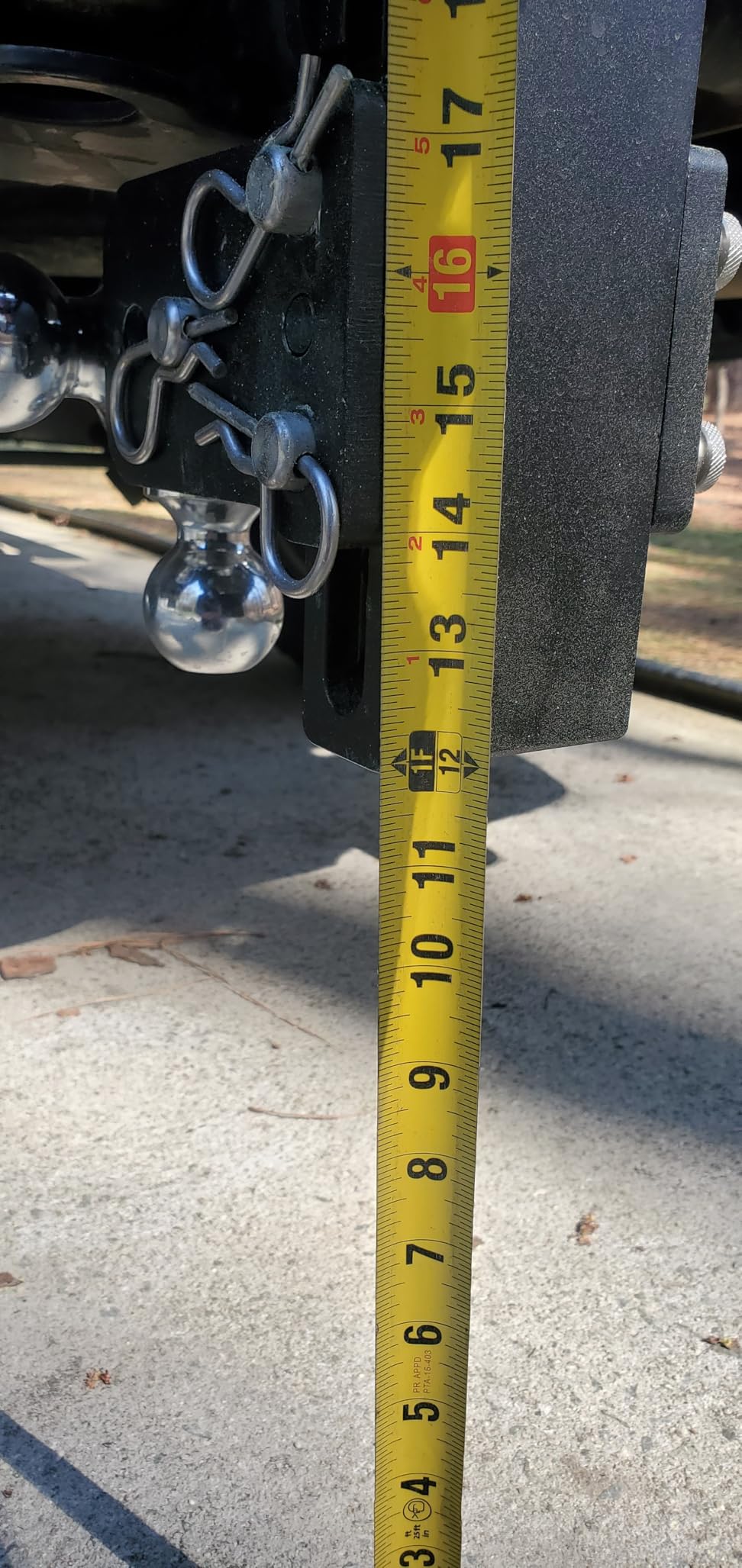

- How to Measure for Rise or Drop in Three Steps
- How to Choose the Right Ball Mount
- Frequently Asked Questions
- Final Verdict
What Is a Trailer Hitch Ball Mount?
A trailer hitch ball mount is the metal assembly that slides into your vehicle’s receiver hitch and holds the hitch ball that latches into your trailer coupler. The ball mount does two jobs at once: it sets the height of the hitch ball so the trailer sits level, and it carries your trailer’s tongue weight back into the receiver.
The three parts are easy to confuse. The receiver hitch is the square tube welded to your vehicle’s frame. The hitch ball is the chrome or forged steel ball, usually welded to a threaded shank. The ball mount is the bracket that connects the two.
One limit worth stating early: a ball mount cannot raise your vehicle’s rated towing capacity. If your truck is rated for 7,000 lb, no mount turns it into a 12,000 lb truck. The lowest number in the chain always wins, and that is usually the vehicle, not the mount.
Top 3 Trailer Hitch Ball Mounts (October 2026)
These three cover the most common towing setups: an adjustable mount for people who change vehicles or trailers, a dual-ball premium mount for people who tow heavier trailers in two ball sizes, and a loaded fixed mount for anyone who wants a ball already installed.
MaxxHaul 70067 Adjustable…
- 8-position drop and rise adjustment
- 5000 lb GTW with 500 lb tongue weight
- Fits 2-inch receivers
- Alloy steel with black powder coat
CURT 45900 Dual-Ball Channe…
- 6-inch drop and 5-1/4-inch rise
- 2-inch ball rated 10000 lb
- 2-5/16-inch ball rated 14000 lb
- Built-in anti-rattle
CURT 45056 Loaded Ball Mount
- 2-inch ball pre-installed and torqued
- 7500 lb GTW with 750 lb tongue weight
- 4-inch drop on a 2-inch shank
- Hitch pin included
All 12 Picks for Best Trailer Hitch Ball Mounts for Towing (October 2026)
Every pick below fits a standard 2-inch receiver unless noted. Ball diameters, gross trailer weight and rise or drop figures come from the manufacturer listings.
| Product | Specs | Action |
|---|---|---|
| MaxxHaul 70067 Adjustable Ball Mount |
|
Check Latest Price |
| CURT 45900 Dual-Ball Channel Mount |
|
Check Latest Price |
| CURT 45056 Loaded Ball Mount |
|
Check Latest Price |
 B&W Tow & Stow TS10048B Tri-Ball |
|
Check Latest Price |
 MaxxHaul 70270 Triple Ball Mount |
|
Check Latest Price |
 Towever 84180 Tri-Ball with Tow Hook |
|
Check Latest Price |
 XPE 2220-3B Tri-Ball with Hook |
|
Check Latest Price |
 TOPTOW 64063 Tri-Ball with Swivel Shackle |
|
Check Latest Price |
 REYSUN 864011 Forged Tri-Ball |
|
Check Latest Price |
 OPENROAD TH-003 Adjustable Mount |
|
Check Latest Price |
 Rhino USA HITCH DROP Adjustable Mount |
|
Check Latest Price |
 CURT 45030 Class III Ball Mount |
|
Check Latest Price |
1. MaxxHaul 70067 Adjustable Ball Mount – Best Overall for Leveling a Trailer
MaxxHaul Adjustable Ball Mount, 5,000 lb Towing Capacity with 8‑Position Height Adjustment, Fits 2″ Receivers, Heavy‑Duty Steel Tow Hitch with Dual‑Pin System (70067)
8-position height adjustment
5000 lb GTW, 500 lb tongue weight
Fits 2-inch receivers
Pros
- Eight positions covering 5 or 7 inch drop and 4 or 6 inch rise settings
- 4.6-star average across 5776 owner reviews
- Alloy steel body with a powder coat finish
- Works with standard 2-inch receivers
Cons
- Hitch pin and ball are not included
- 90-day warranty is short for a towing component
- Weighs 14.8 lb
This is the mount we kept coming back to. The 70067 uses a two-plate design with pin holes at multiple heights, so you can set drop at 5, 7, 9 or 11 inches and rise at 4, 6, 8 or 10 inches. That is more positions than most adjustable mounts at this level offer.
The rating comes from 5,776 owner reviews at a 4.6-star average, and the volume of feedback is useful in itself. Owners talk about moving the same mount between a crossover and a full-size pickup and getting the trailer level both times without buying a second mount.
Two things to plan for before it arrives. The hitch pin is not included, and neither is the ball, so budget for a 5/8-inch pin with clip and a 2-inch or 2-5/16-inch ball depending on your coupler. That is the single most repeated complaint in the reviews, and it is fair.
The 90-day manufacturer warranty is short. Owners counter that the alloy steel body has held up for years, but if a long warranty is part of how you judge a towing part, look at mounts with a limited lifetime warranty instead.
Who it fits well
This is the right pick for a household that tows more than one trailer, or one trailer between two vehicles at different heights. The 5,000 lb gross trailer weight rating covers most utility, stock-height and small boat trailers with room to spare.
It is also a sensible first mount for someone who has never measured rise and drop properly. If you guess wrong, you move the pins instead of buying another part.
Where it falls short
At 14.8 lb it is a heavy lift for a light-duty duty mount, and the 500 lb tongue weight limit is well under what many pickups can pull. If your trailer is heavy enough to push past 500 lb of tongue weight, this is not the mount, and no amount of adjusting changes that.
It is a 2-inch receiver mount only. Anyone on a 2-1/2-inch receiver or a 1-1/4-inch Class I hitch needs a different shank.
2. CURT 45900 Adjustable Dual-Ball Channel Mount – Most Versatile for Heavy Towing
CURT 45900 Adjustable Dual-Ball Channel Mount, 2″ Shank, 6″ Drop
6-inch drop or 5-1/4-inch rise
2-inch ball rated 10000 lb
2-5/16-inch ball rated 14000 lb
Pros
- Handles 2-inch and 2-5/16-inch trailers with one mount
- Very high load ratings on both balls
- Reversible shank gives a wide drop and rise range
- Built-in anti-rattle keeps the hitch quiet
Cons
- Premium-priced compared with simpler fixed ball mounts
- Ball and hitch pin sold separately
- Long shank can clash with some spare tire setups
Curt built this one for people who tow heavy and do not want to think about it. The channel-style platform slides to change the drop, and the shank can be flipped to give a 5-1/4-inch rise or a 6-inch drop from the same mount.
The load ratings are the headline. The 2-inch ball is rated to 10,000 lb and the 2-5/16-inch ball to 14,000 lb, which puts it well past anything most half-ton trucks can pull and squarely in heavy travel trailer territory.
Owners rate it 4.8 stars across more than 3,500 reviews, and the built-in anti-rattle mechanism comes up constantly as the reason the hitch stopped bouncing. Curt also puts pin holes at two positions, giving an 11-inch or 12-inch shank depending on how much receiver tube you need to reach.
The honest downside is cost, which owners mention often. It is also a tall package, and on vehicles with a large spare tire or a low-hanging bumper you need to measure clearance before you commit.
Who it fits well
Buy this if you tow a loaded travel trailer, run a boat trailer with a 2-5/16-inch coupler, or pull equipment trailers where tongue weight climbs fast. One mount covering both common ball sizes removes the single most common hitch-up mistake.
It is also the pick for anyone who has been fighting coupler bounce on long highway trips and wants the rattle handled by hardware rather than by grease alone.
Where it falls short
This is a premium-priced part and the reviews do not hide that. If you tow one small utility trailer under 3,500 lb and nothing else, you are paying for capacity and adjustability you will not use.
The reverse shank means the geometry changes when you flip it, so set it up once and check the coupler latch sits fully closed before every tow.

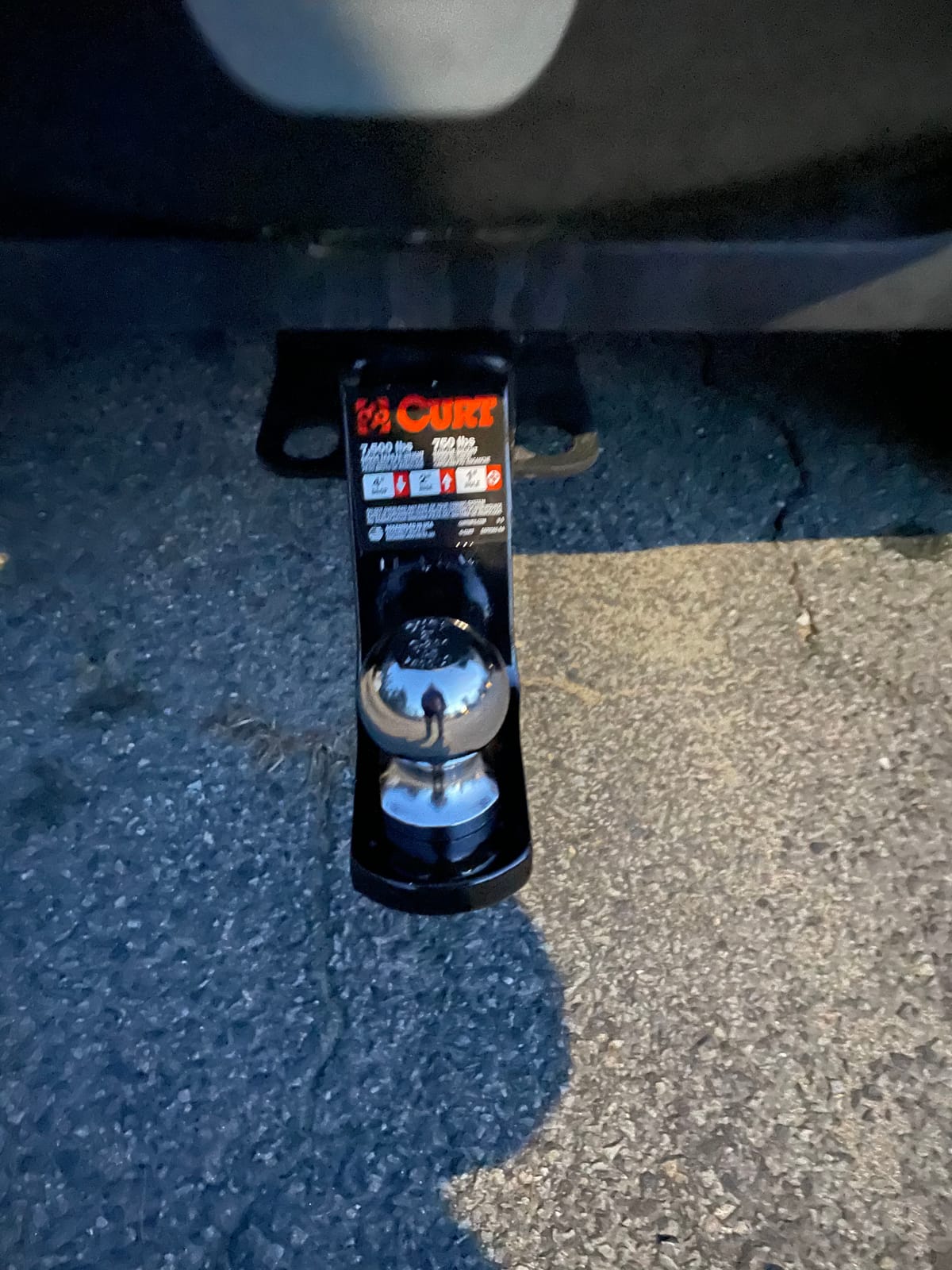

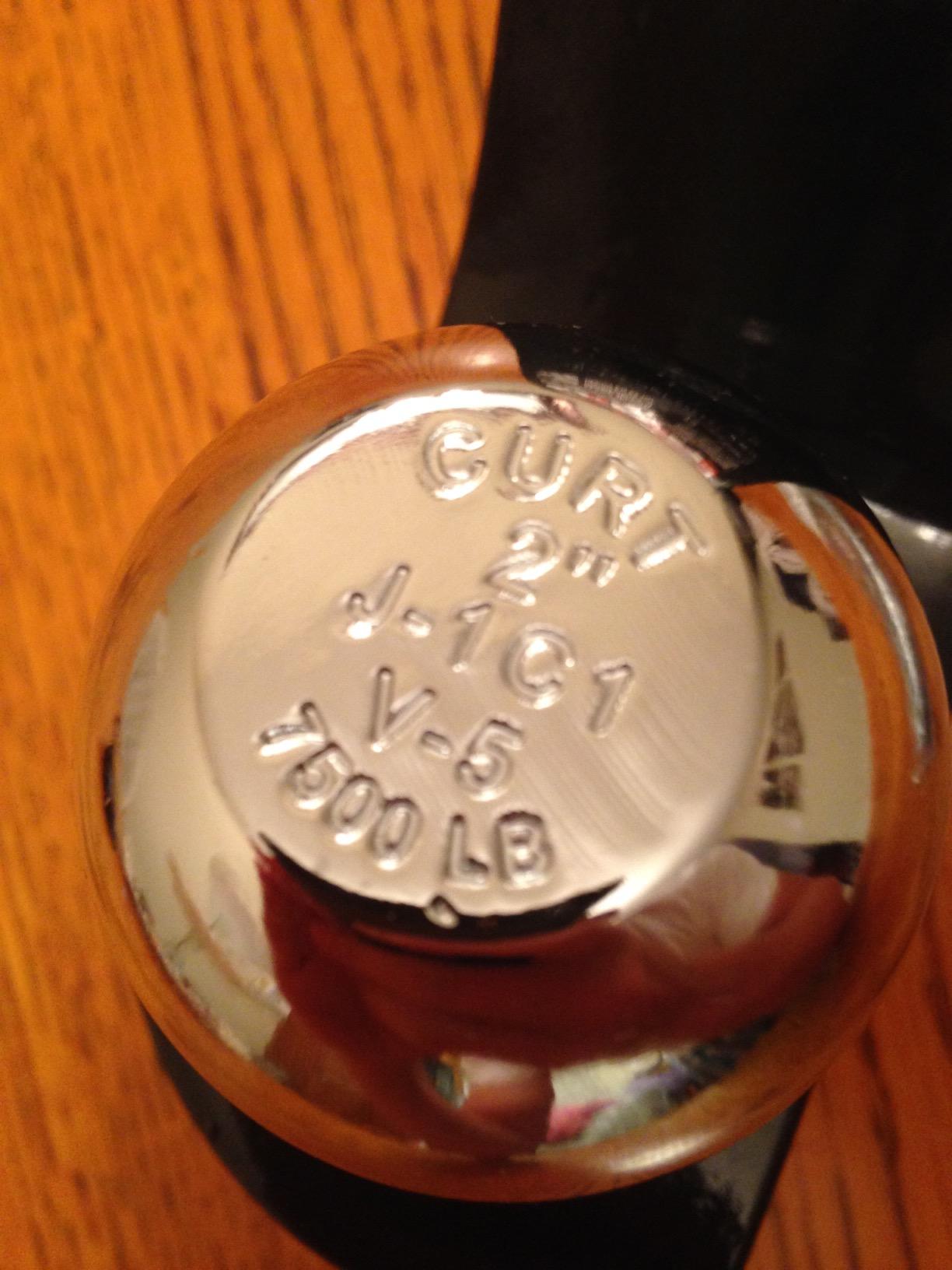

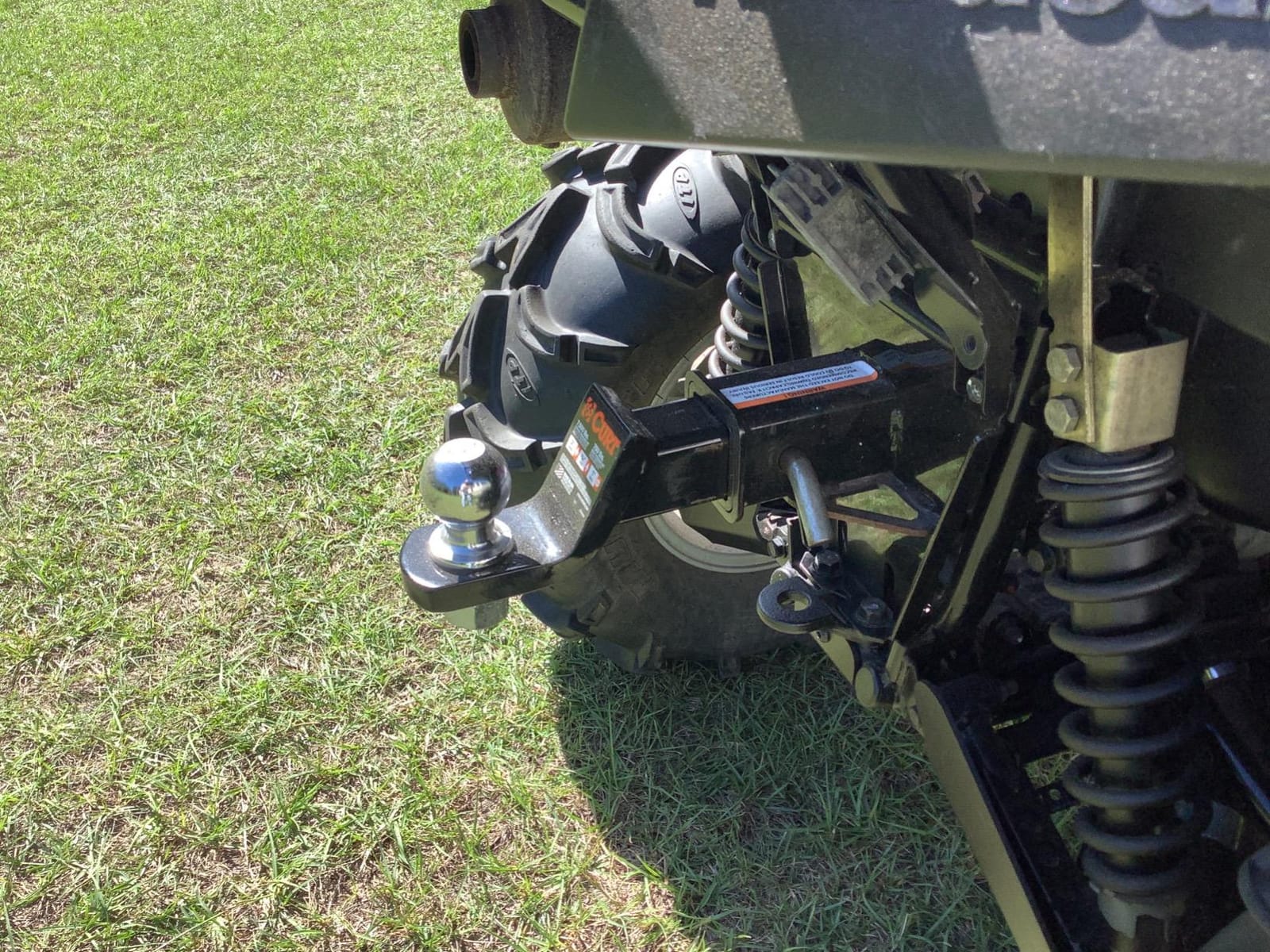

3. CURT 45056 Loaded Ball Mount – Best Value Fixed 4-Inch Drop
CURT 45056 Loaded Ball Mount, 2″ Shank, 2″ Ball, 4″ Drop, 7,500 lb
Ball pre-installed and torqued
7500 lb GTW, 750 lb tongue weight
Hitch pin included
Pros
- Ball arrives installed and torqued so there is no assembly
- Includes a 5/8-inch hitch pin and clip
- 7500 lb GTW with 750 lb tongue weight
- No rust reported across rain
- snow and road salt use
Cons
- Fixed 4-inch drop cannot be adjusted
- 2-inch ball does not fit 50 mm European couplers
- Ball is not easily replaced without changing the rating
This is the mount we recommend to anyone who wants one box, one bolt and no measuring. The 2-inch ball is already welded and factory torqued onto the mount, and a hitch pin with clip is in the box.
Rated to 7,500 lb gross trailer weight and 750 lb tongue weight on a 2-inch by 2-inch hollow shank, it covers most travel trailers, boat trailers and utility trailers behind a Class III receiver. The 4-inch drop levels many stock-height pickups and SUVs.
Owners rate it 4.7 stars across 3,228 reviews, and the praise repeats: it goes in, it pins, it tows. Corrosion resistance is a common theme, with buyers reporting no rust after seasons of rain, snow and road salt.
Overall length is 8-1/4 inches, and the rounded shank makes installation smoother in a tight receiver. That matters more than it sounds when you are on your back under a bumper.
Who it fits well
This suits a single-trailer household that tows on a stock-height vehicle and wants a set-and-forget mount. It is also the easiest option for a first-time trailer owner who does not want to assemble a ball to a shank.
If you tow a boat or dump trailer with a 2-5/16-inch coupler, skip this one. The ball is fixed at 2 inches.
Where it falls short
Four inches of drop is fixed. If you later move the trailer to a lifted truck or a lowered crossover, the geometry changes and nothing about this mount adjusts.
The other recurring caveat is international use. The 2-inch ball is a North American standard and will not enter a 50 mm European coupler.

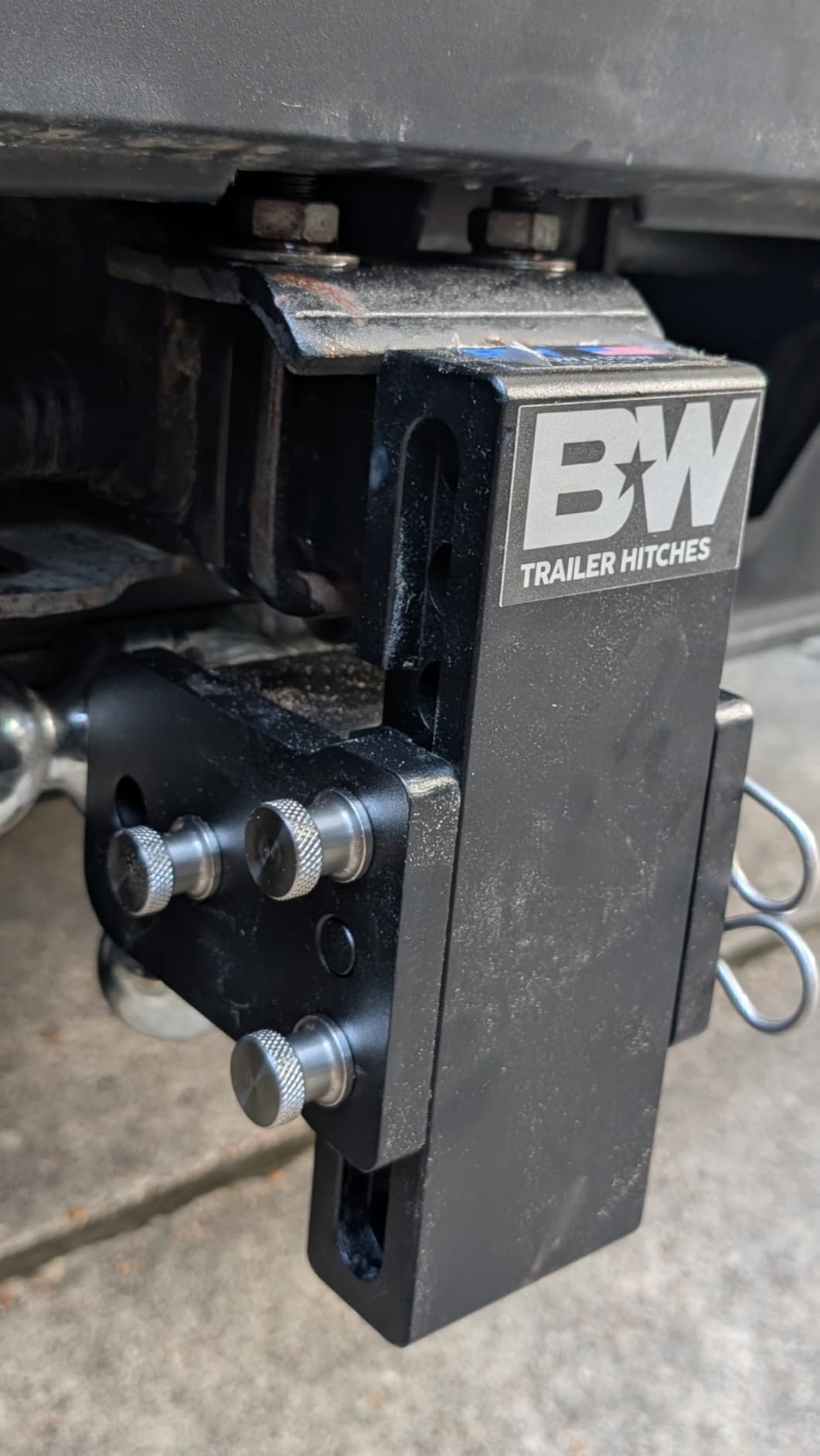

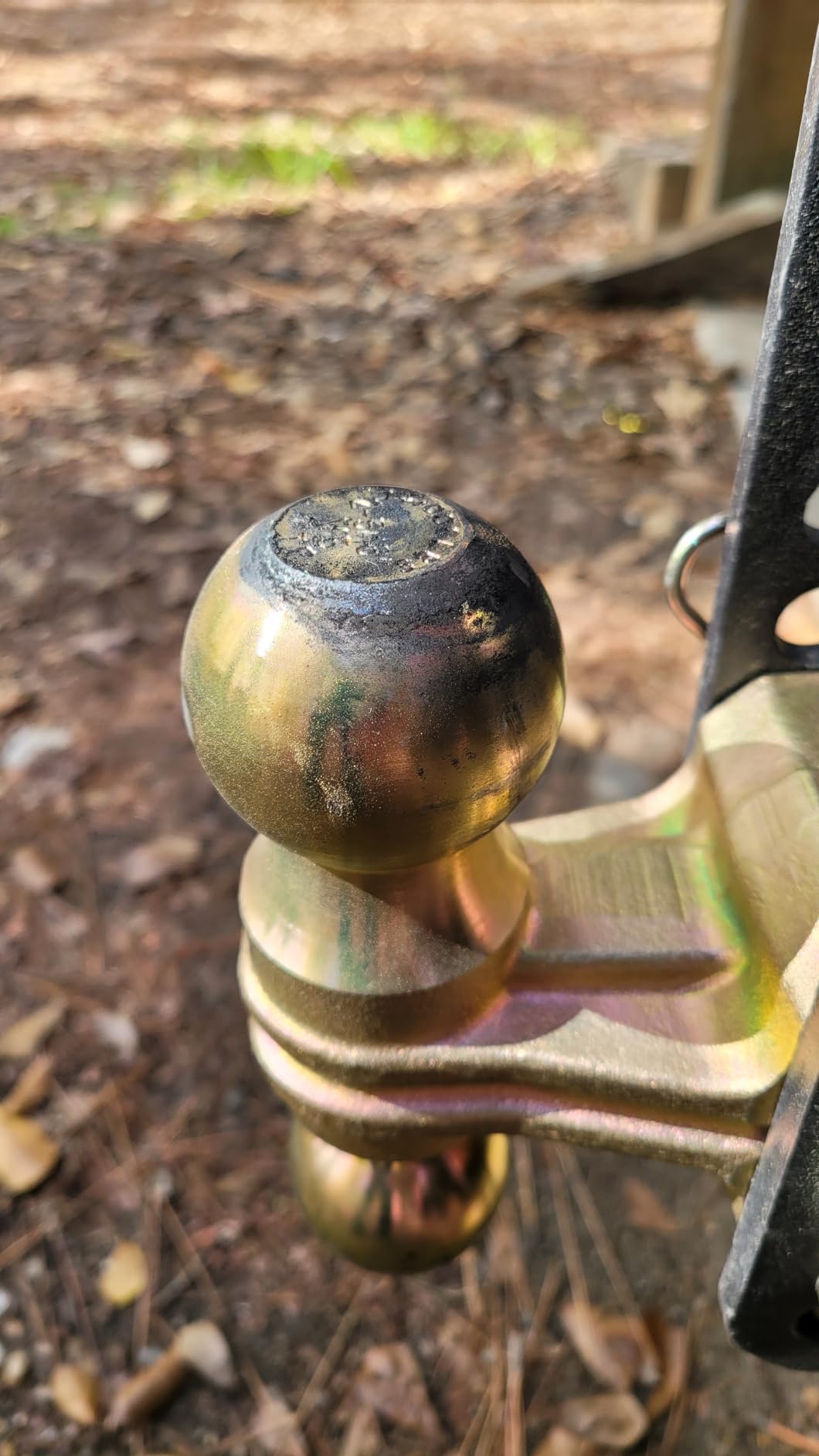

4. B&W Tow & Stow TS10048B – Best Tri-Ball for Multi-Trailer Households
B&W Trailer Hitches Tow & Stow Adjustable Trailer Hitch Ball Mount – Fits 2″ Receiver, Tri-Ball (1-7/8″ x 2″ x 2-5/16″), 5″ Drop, 10,000 GTW – TS10048B
1-7/8, 2 and 2-5/16 inch balls
5-inch drop
10000 lb GTW
Lifetime warranty
Pros
- Three ball sizes plus a 5-inch adjustable drop in one mount
- Rotating ball assembly stows under the bumper
- Limited lifetime warranty and made in the USA
- Anti-theft lock once pinned in most receivers
Cons
- Most expensive mount in this roundup
- 25 lb is heavy to lift into a receiver
- Some slop in certain receivers
The Tow & Stow is the one-and-done answer for people who tow a boat, a utility trailer and a travel trailer through the same receiver. The ball assembly carries 1-7/8-inch, 2-inch and 2-5/16-inch balls, and the arm adjusts for a 5-inch drop using stainless steel pins.
Owners also like that the ball assembly rotates to stow under the vehicle, which stops the ball from becoming a shin guard and a garage door hazard. Rated to 10,000 lb GTW with a limited lifetime warranty.
At 4.8 stars from 2,397 reviews, this is one of the highest-rated mounts in the category. Owners frequently describe it as a lifetime purchase that has outlasted the vehicles it was bolted into.
The finish is an e-coat base under an ironclad black powder coat, manufactured and assembled in Humboldt, Kansas. Two stainless steel adjustment pins set the height, and an anti-theft design locks the arm in most receivers once pinned.
Who it fits well
This is the pick for a boat trailer owner who also pulls something with a 2-inch coupler, and for anyone who changes trailer ball size often. The rotating stow function also makes it the safest choice for someone who backs a truck into a garage daily.
Boat trailers in particular tend to be light but awkward, and having all three ball diameters on one mount removes the guesswork at the ramp.
Where it falls short
It is the heaviest and priciest mount here at 25 lb. Two owners also report a little slop in certain receivers, which is usually resolved with a hitch clamp or a rubber pad between the shank and the tube.
If you leave it mounted year-round on a coastal vehicle, expect to wipe surface rust off the powder coat occasionally.

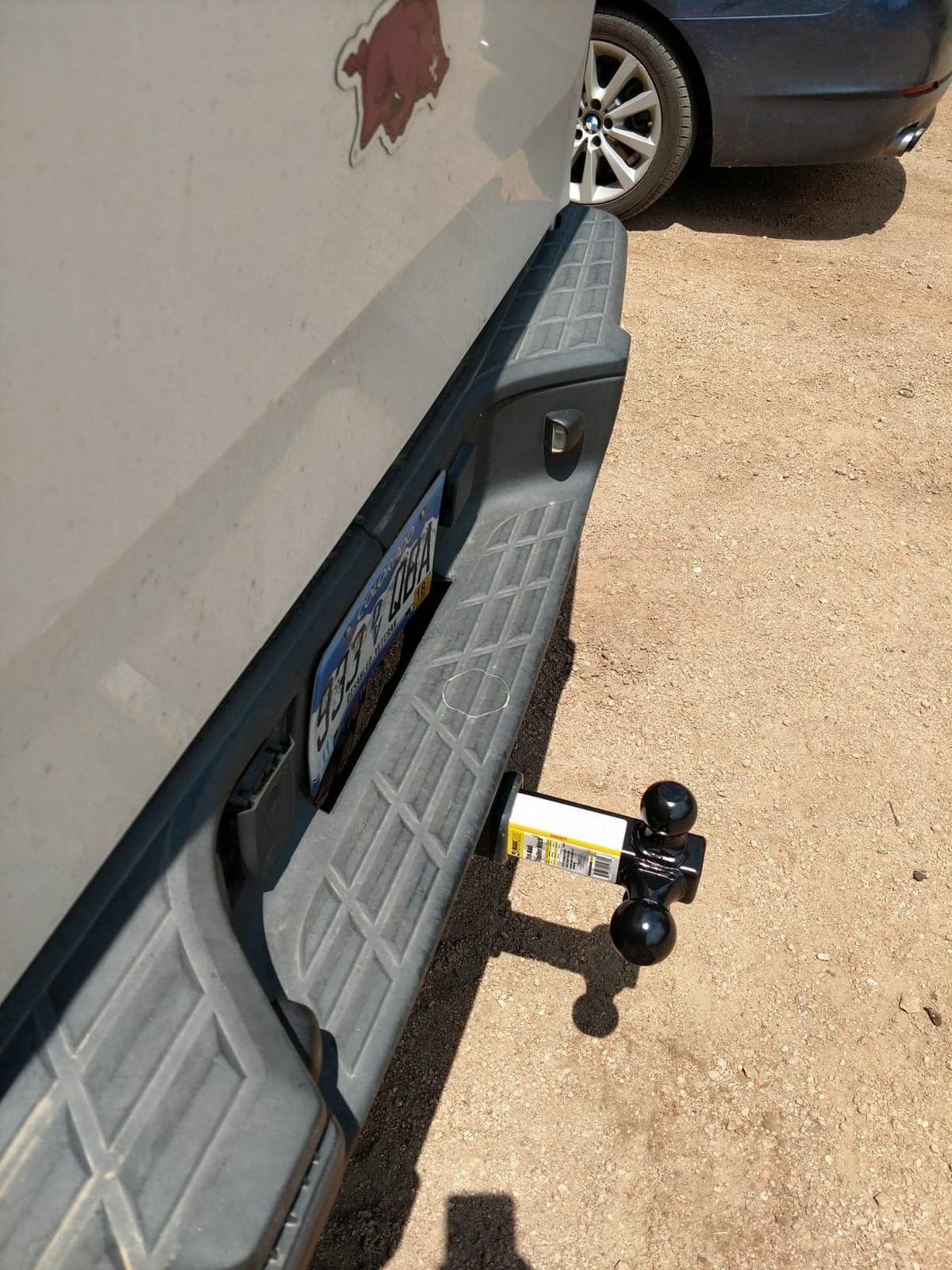

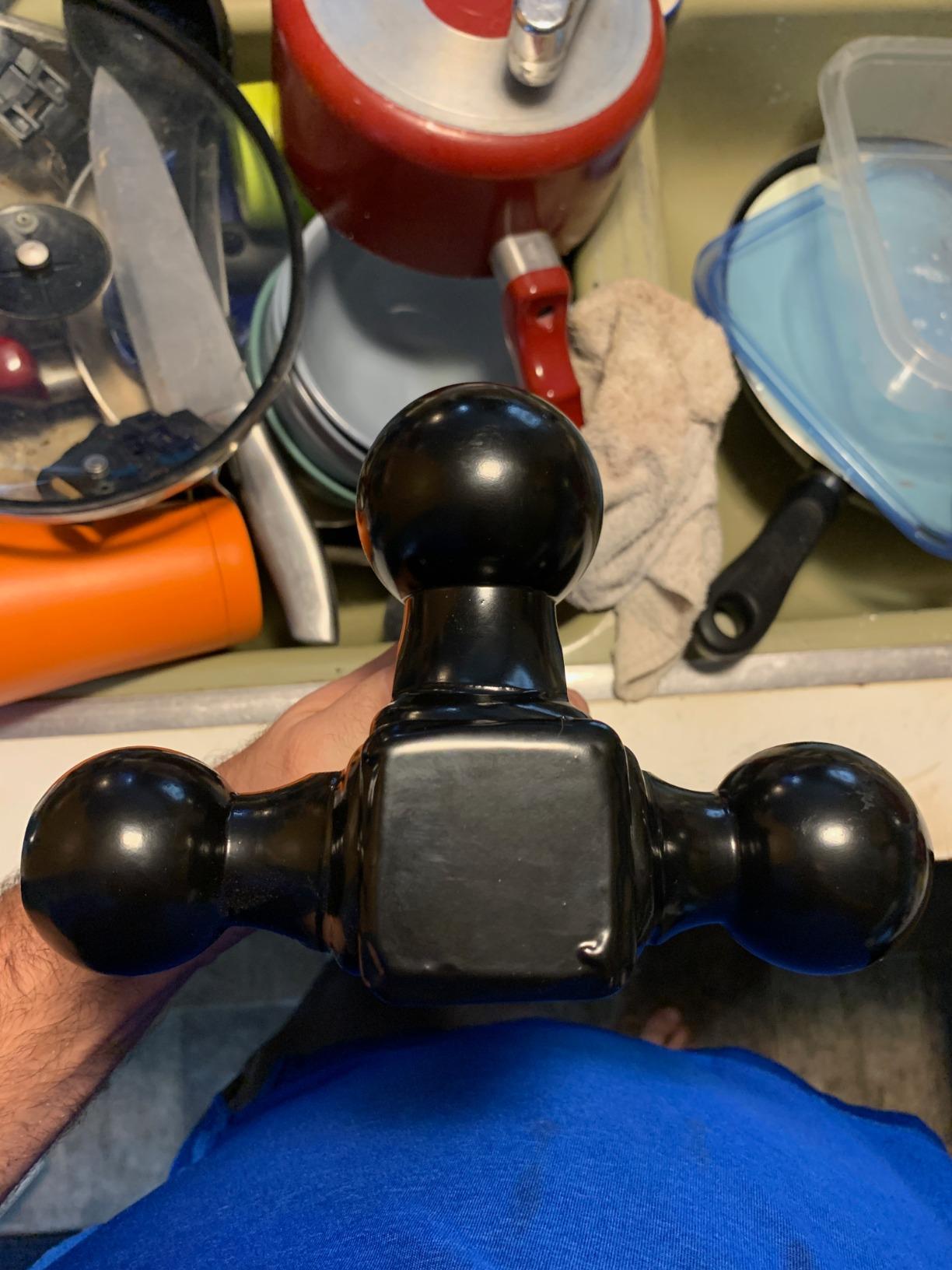

5. MaxxHaul 70270 Triple Ball Mount – Best Budget Tri-Ball
MaxxHaul 70270 Trailer Hitch Hollow Shaft Triple Ball Mount – Black
1-7/8, 2 and 2-5/16 inch balls
2000, 5000 and 7500 lb ratings
10-inch overall length
Pros
- Three ball diameters at a budget price point
- Hollow shank slides into a standard 2-inch receiver easily
- Alloy steel with a black powder coat
- 4.7 stars from more than 2000 ratings
Cons
- Fixed drop with no height adjustment
- Hitch pin and lock not included
- 90-day manufacturer warranty
- 1-7/8-inch ball rated only 2000 lb
The 70270 is the simple version of the tri-ball idea: three ball sizes welded into one hollow shank, 10 inches long, with a black powder coat. No adjustment, no frills, three couplers covered.
Per-ball ratings are 2,000 lb, 5,000 lb and 7,500 lb. That spread is the key detail most people miss, because the small ball is genuinely the weak point on this mount.
With 2,053 reviews at 4.7 stars, owners mostly describe it as dependable hardware that covers all three common coupler sizes without fuss. Installation is reported as quick, with the hollow shank gliding into a standard 2-inch receiver.
Budget reviewers on towing forums consistently treat this style of mount as plenty for small utility, stock-height and boat trailers, which is exactly what the ratings support.
Who it fits well
It is a good match for a property owner with a small trailer, a dirt bike hauler or a personal watercraft trailer where the loaded weight stays modest. Anyone with several trailer ball sizes in the garage benefits from having all three on one shank.
It is also a sensible second mount for a second vehicle, since it costs little and needs only a pin.
Where it falls short
There is no rise or drop adjustment at all, so it only works where the vehicle and trailer heights already line up. The 1-7/8-inch ball at 2,000 lb is fine for a small utility trailer and not fine for anything larger.
The 90-day warranty is also short, and the hitch pin is not in the box.

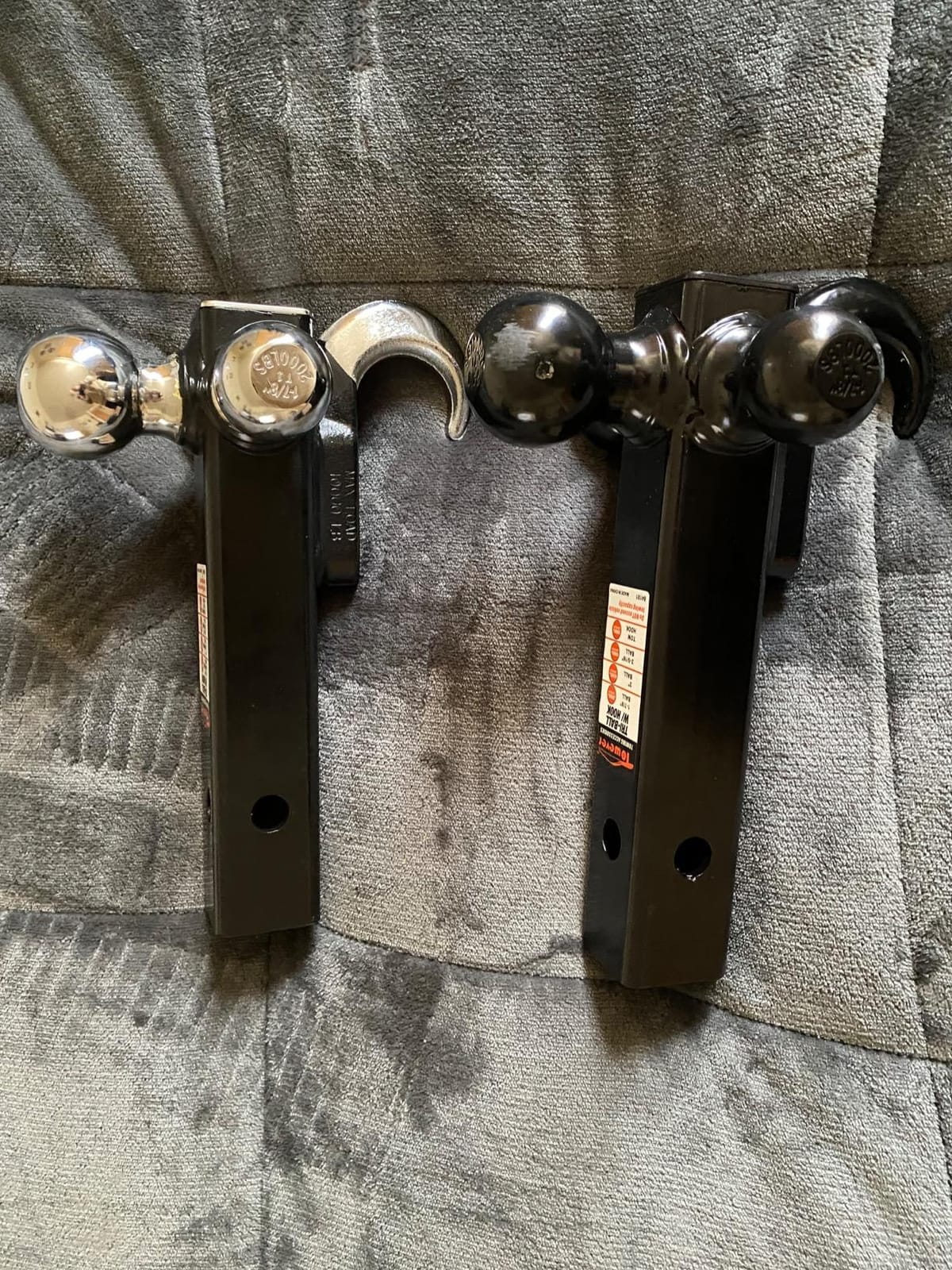

6. Towever 84180 Tri-Ball with Tow Hook – Best for Utility Trailers and Recovery Work
TOWEVER 84180 Trailer Hitch Tri Ball Mount with Hook, 3 Ball Hitch Fit for Towing Hitch 2 inch Receiver (Hollow Shank Tow Hitch, Black & Chrome)
Three balls plus a 10,000 lb tow hook
2000, 6000 and 10000 lb ratings
Fits 2-inch receivers
Pros
- Three ball sizes and a rated tow hook in one mount
- 10000 lb rating on the 2-5/16-inch ball and the hook
- Chrome balls hold their finish
- One owner towed a car cross-country without incident
Cons
- Hitch pin or lock not included
- Light surface rust and finish blemishes reported after about a year
- Fixed drop
- One reviewer disliked the visible finish quality

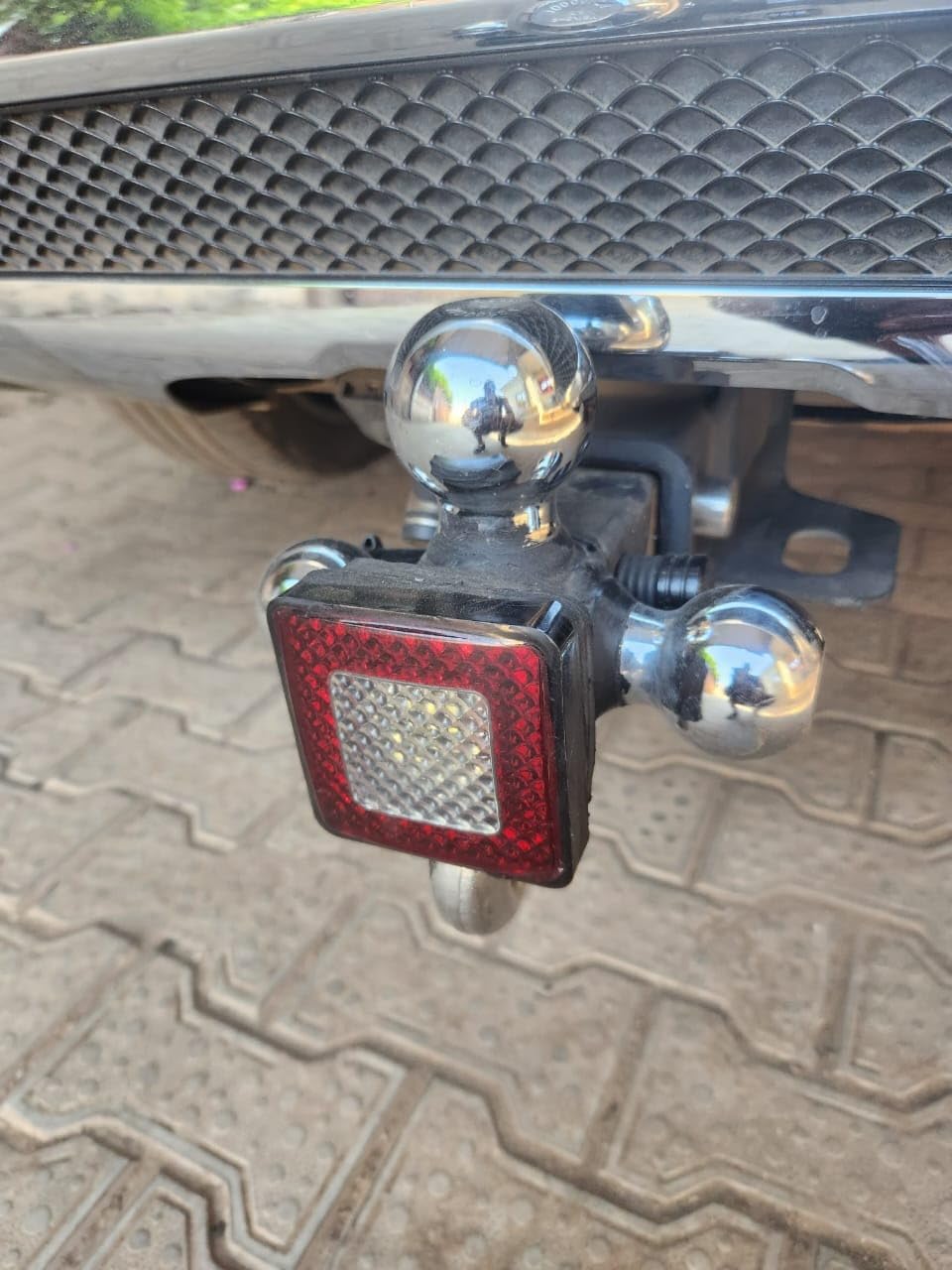

The 84180 pairs three chrome balls with an integrated tow hook rated to 10,000 lb. Per-ball ratings run 2,000 lb for the 1-7/8-inch, 6,000 lb for the 2-inch and 10,000 lb for the 2-5/16-inch.
It fits Class III and Class IV 2-inch receivers from the major brands, including Curt, Draw-Tite, Blue Ox, Thule, Yakima and U-Haul. Usable shank length is 7-1/2 inches, 12 inches overall.
At 4.7 stars from 1,393 reviews, owners tend to say they use far less than the mount can handle, which is a good problem to have. The tow hook gets mentioned as handy for pulling a stuck vehicle out of mud or a driveway.
The chrome balls are a visual upgrade over plain black, and owners comment they still look clean after a season or two of use.
Who it fits well
Utility and stock-height trailers with a 2-inch coupler are the sweet spot, especially if you also want a recovery point in the same part. It is a good pick for farm and property work where one trailer gets used for everything.
If you ever need to move a car or a small tractor, the hook and the 10,000 lb 2-5/16-inch ball give you options a plain fixed mount does not.
Where it falls short
You need to buy a 5/8-inch hitch pin or lock separately. Owners also report light surface rust and finish blemishes appearing around the one-year mark, so a wipe-down with grease before storage is worth doing.
The drop is fixed, so it is not a solution for a vehicle and trailer at very different heights.

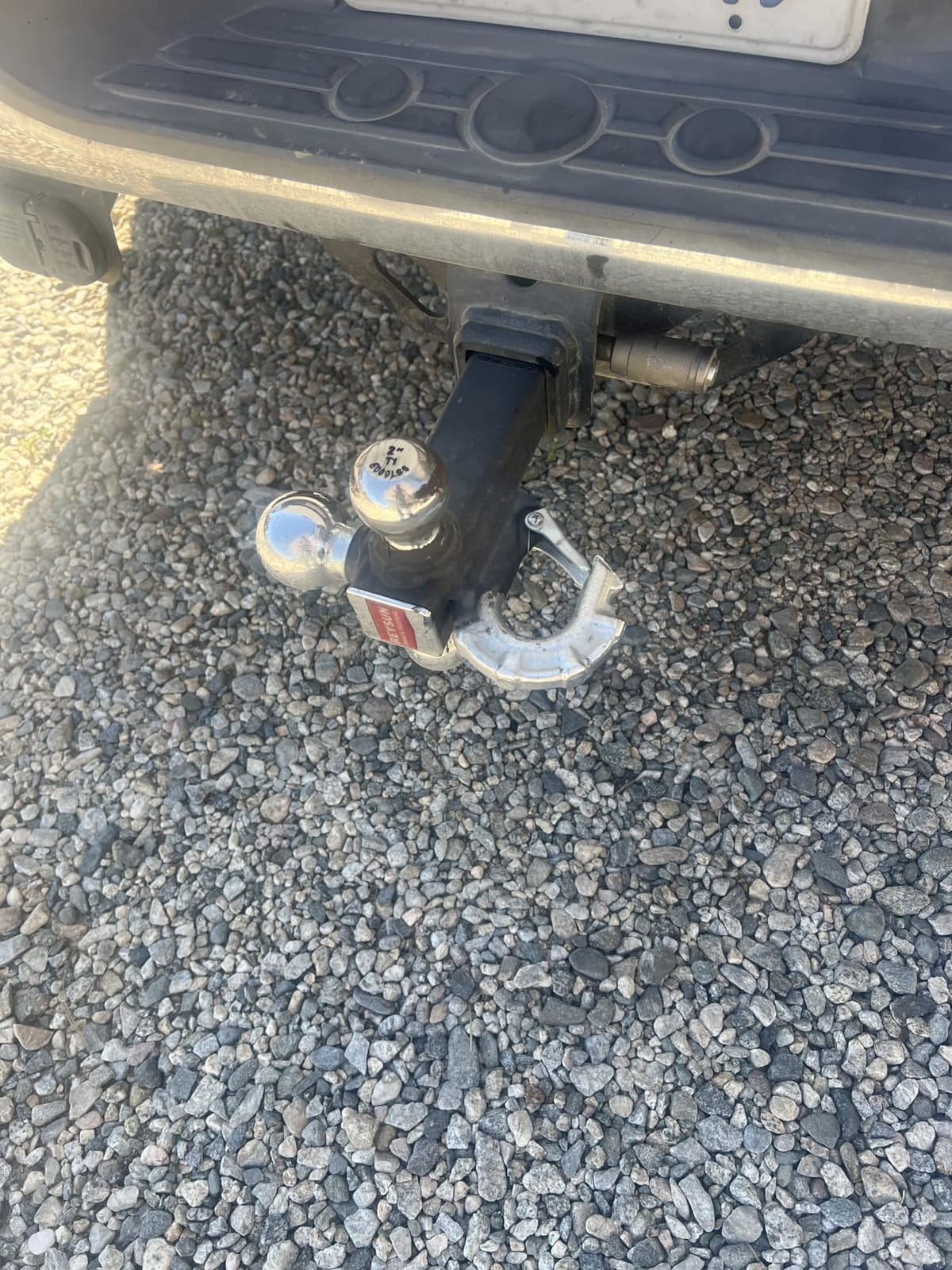

7. XPE 2220-3B Tri-Ball with Hook – Best All-Round Tri-Ball
XPE Tri Ball Trailer Hitch Mount with Hook Fits 2 Inch Receiver Matte Black
Three ball sizes with a 10,000 lb tow hook
3500, 5000 and 7500 lb ratings
Fits 2-inch receivers
Pros
- Currently the top-selling item in Amazon's Towing Ball Mounts category
- 4.8 stars from nearly 1200 reviews
- Snug wobble-free fit in a 2-inch receiver
- Welded alloy steel with powder coat and electroplating
- Installs in seconds
Cons
- Heavy at 13 lb for a fixed mount
- No hitch pin included
- Fixed drop with no height adjustment
- Verify the ball rating for heavy trailers
The XPE sits at the top of Amazon’s Towing Ball Mounts category and carries a 4.8-star rating from 1,191 reviews. It is a welded alloy steel tri-ball with a 10,000 lb rated hook and electroplating under the powder coat.
Ball ratings are 3,500 lb for 1-7/8-inch, 5,000 lb for 2-inch and 7,500 lb for 2-5/16-inch. That middle step is unusual here, since most tri-balls jump straight from light to heavy on the 2-inch ball.
Owners repeatedly mention a snug, wobble-free fit in the receiver and near-instant installation, which is the practical difference between this and a loose-fit budget shank. It fits all standard 2-inch receivers.
The finish story matters for anyone in a salt belt or near the coast. Powder coat plus electroplating is why owners report rust resistance rather than a first-winter cleanup.
Who it fits well
This is the do-everything tri-ball for someone who tows a mix of small and medium trailers and does not want to think about ball diameter. The hook adds a recovery point without another accessory.
It suits a Class III or Class IV 2-inch receiver on a crossover, SUV or half-ton truck, and the 2-5/16-inch ball covers most boat trailers up to 7,500 lb.
Where it falls short
At 13 lb it is heavy for a fixed mount, and you will notice that weight when installing it alone. There is also no hitch pin in the box.
If your trailer pushes past 7,500 lb gross, the 2-5/16-inch ball is at its rating and you need a heavier mount such as a dual-ball adjustable or a weight distribution hitch.

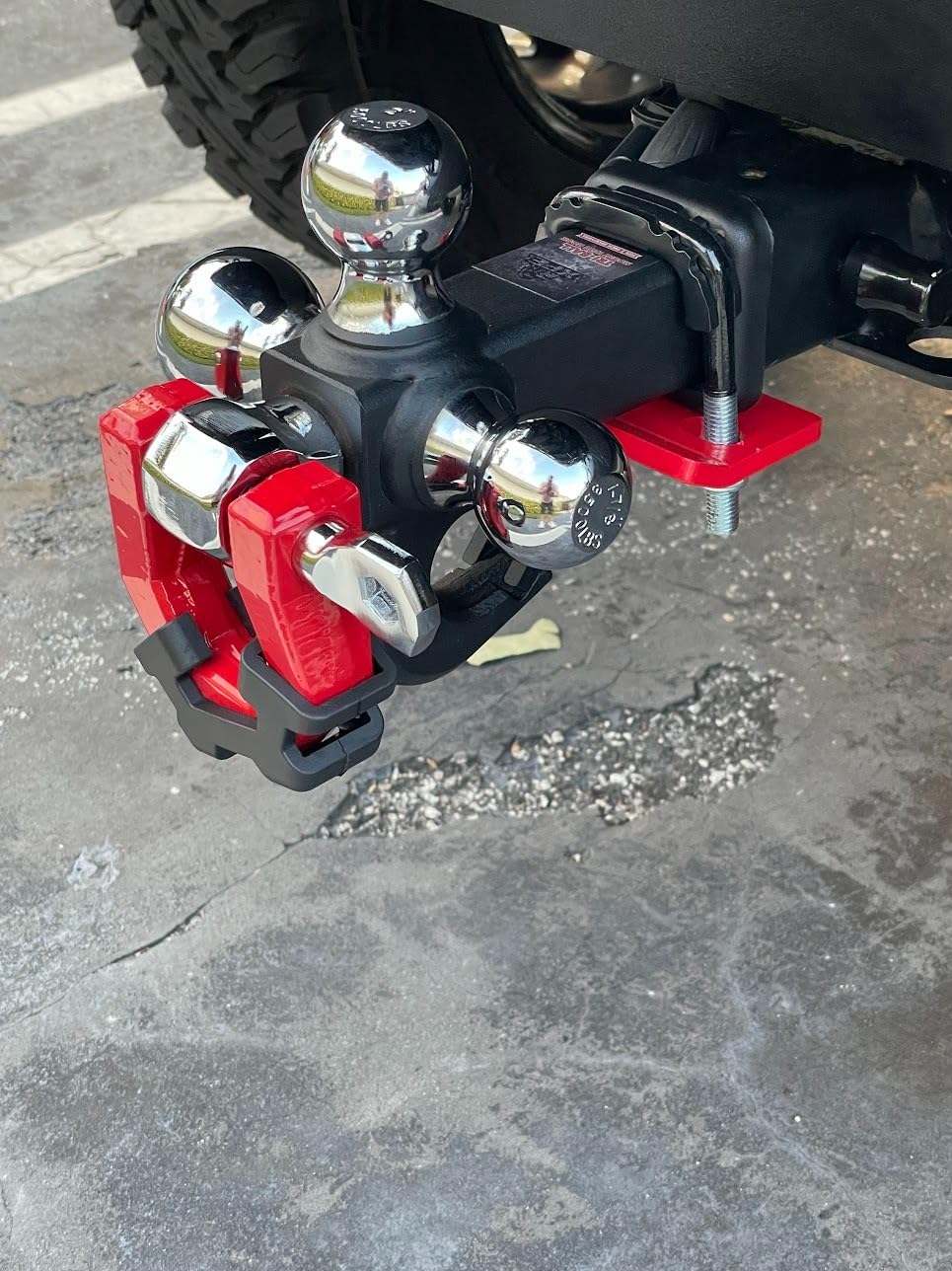

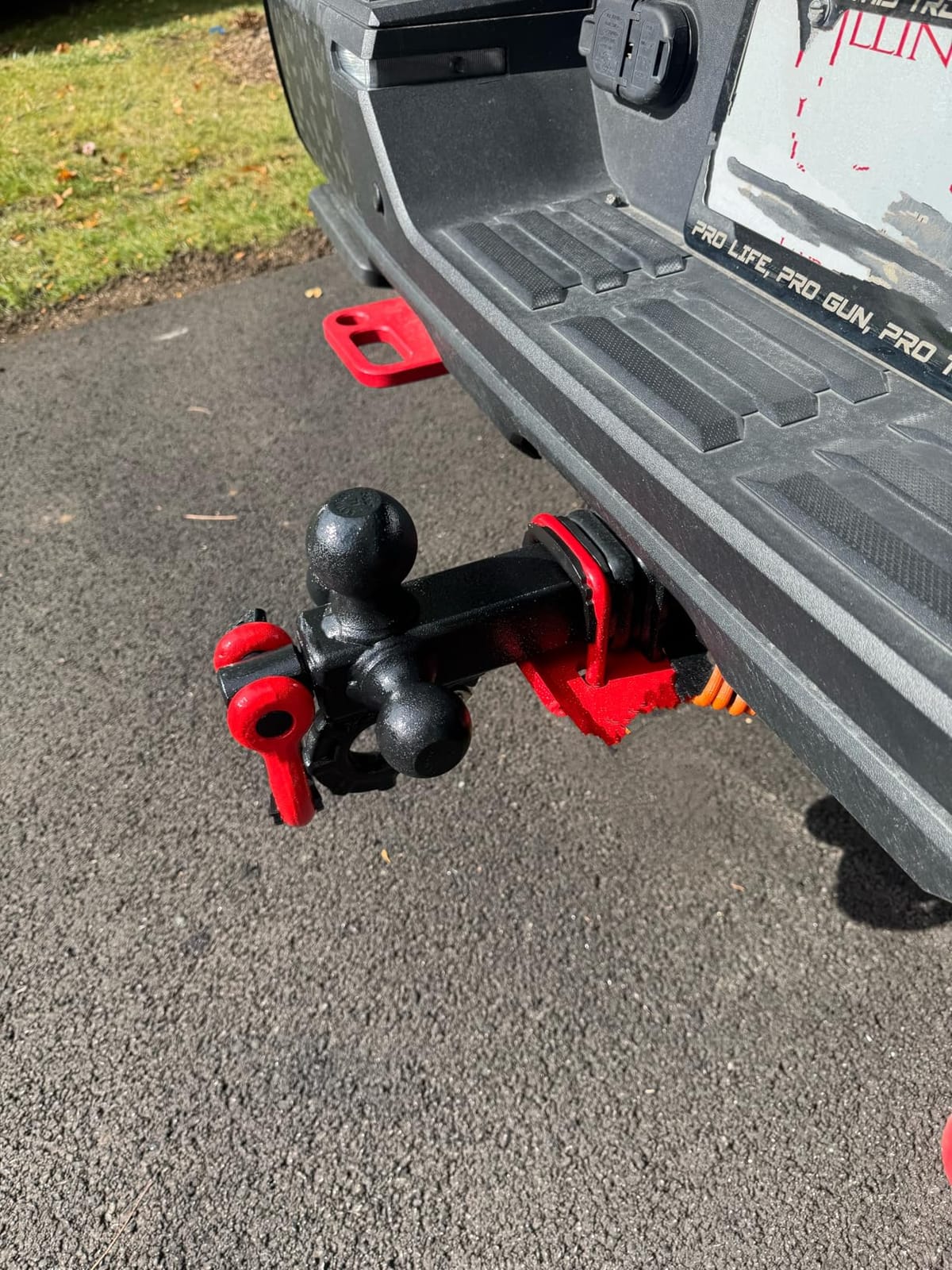

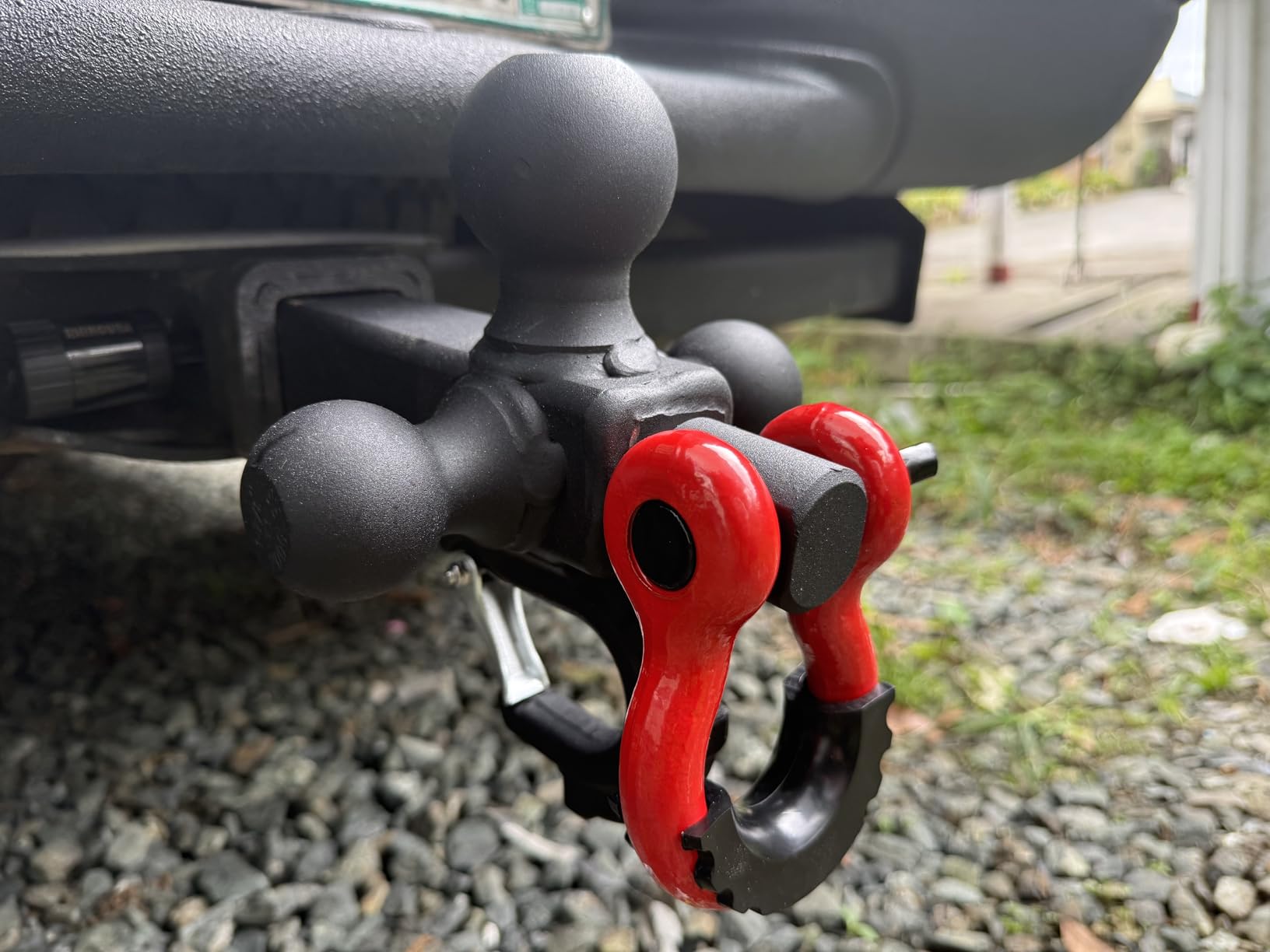

8. TOPTOW 64063 Tri-Ball with Swivel Shackle – Best for Recovery Gear and Off-Road Work
TOPTOW Trailer Hitch Tri-Ball Hitch Mount w/Matte Black Triple Hitch Balls 1-7/8-inch, 2-inch, 2-5/16-inch, Multi-fit for 2 inch Trailer Hitch Receiver
Three ball sizes on a 360-degree swivel
2000, 6000 and 10000 lb ratings
12-inch overall length
Pros
- Swivel base with shackle and hook adds recovery capability
- Robotically welded balls and a 10000 lb 2-5/16-inch ball
- Quick ball changes between trailers
- Color options to match the truck
Cons
- Hollow shank unsettles some buyers on heavy loads
- Paint can rust at weld points within weeks
- No hitch pin included
- Bulky at 15.6 lb
The 64063 is the most feature-dense tri-ball here. Beyond the three ball sizes, it has a 360-degree swivel base carrying a 3/4-inch tow shackle and a tactical tow hook rated to 10,000 lb.
Ball ratings are 2,000 lb, 6,000 lb and 10,000 lb, and the construction is heat-treated carbon steel with robotically welded balls and a swivel shackle base. Shank measures 7-1/2 inches usable, 12 inches overall.
Owners rate it 4.6 stars from 909 reviews and mainly praise the versatility of having three balls, a shackle and a hook in one part, plus how quickly they can switch between trailers.
Color options including black, chrome and blue are a small detail that owners with matching trucks notice. The one-year manufacturer warranty is longer than most in this group.
Who it fits well
It suits off-road and rural users who want a recovery point as much as a coupler. If you run a dirt bike trailer and occasionally pull yourself or someone else out of a soft spot, the shackle and hook earn their space.
The 10,000 lb 2-5/16-inch ball handles mid-size boat and equipment trailers in a single mount.
Where it falls short
Some buyers are uneasy about the hollow shank for heavy loads, and that concern is worth taking seriously if you are near a rating. Paint also begins rusting at weld pinch points within a week or two for a minority of owners.
It is bulky at 15.6 lb, and the pin is not included despite the size of the unit.
9. REYSUN 864011 Forged Tri-Ball – Best When You Want the Pin Included
REYSUN Patented Forged Trailer Hitch Tri-Ball Hitch with Hook: 3 Sizes in 1 Tow Ball Hitch, Fits 2-inch Hitch Receiver, Secure Locking Mechanism, Matt Black
Three ball sizes with a forged tow hook
5/8-inch hitch pin included
One-click self-locking pin
Pros
- Only tri-ball here that includes a 5/8-inch hitch pin
- One-click self-locking mechanism needs no tools
- Pin holes on all four sides for each ball position
- Forged hook with safety latch rated to 10000 lb
Cons
- Paint can chip or peel during sticker removal
- Included pin is a slotted style some buyers dislike
- Fixed drop with no height adjustment
Most tri-balls in this roundup come without a pin, which means one more order before you can tow. The REYSUN 864011 includes a 5/8-inch hitch pin and adds a one-click self-locking snap mechanism that goes in without tools.
The three balls cover 1-7/8-inch, 2-inch and 2-5/16-inch, and the patented forged tow hook carries a safety latch rated to 10,000 lb. Pin holes are drilled on all four sides so you can pin in any ball position.
Owners rate it 4.7 stars from 902 reviews, and the reviews focus on the same two things: the included pin and the lock. People also describe the construction as solid and heavy-feeling, with good rust resistance.
It fits most standard 2-inch hitch receivers and draw bars across Class III through V, with 7-1/2 inches of usable shank and 12 inches overall.
Who it fits well
This is the pick for someone who wants to buy once and hitch up the same day. If you are new to towing and do not yet know which pin style your receiver takes, the included pin removes the first piece of guesswork.
The locking mechanism also helps if the trailer lives outside or you park near a street.
Where it falls short
Owners report paint chipping or peeling, including during sticker removal, so treat the finish with a bit of care. The included pin is a slotted style that some buyers simply dislike.
Like most tri-balls in this group, the drop is fixed with no rise or drop adjustment.

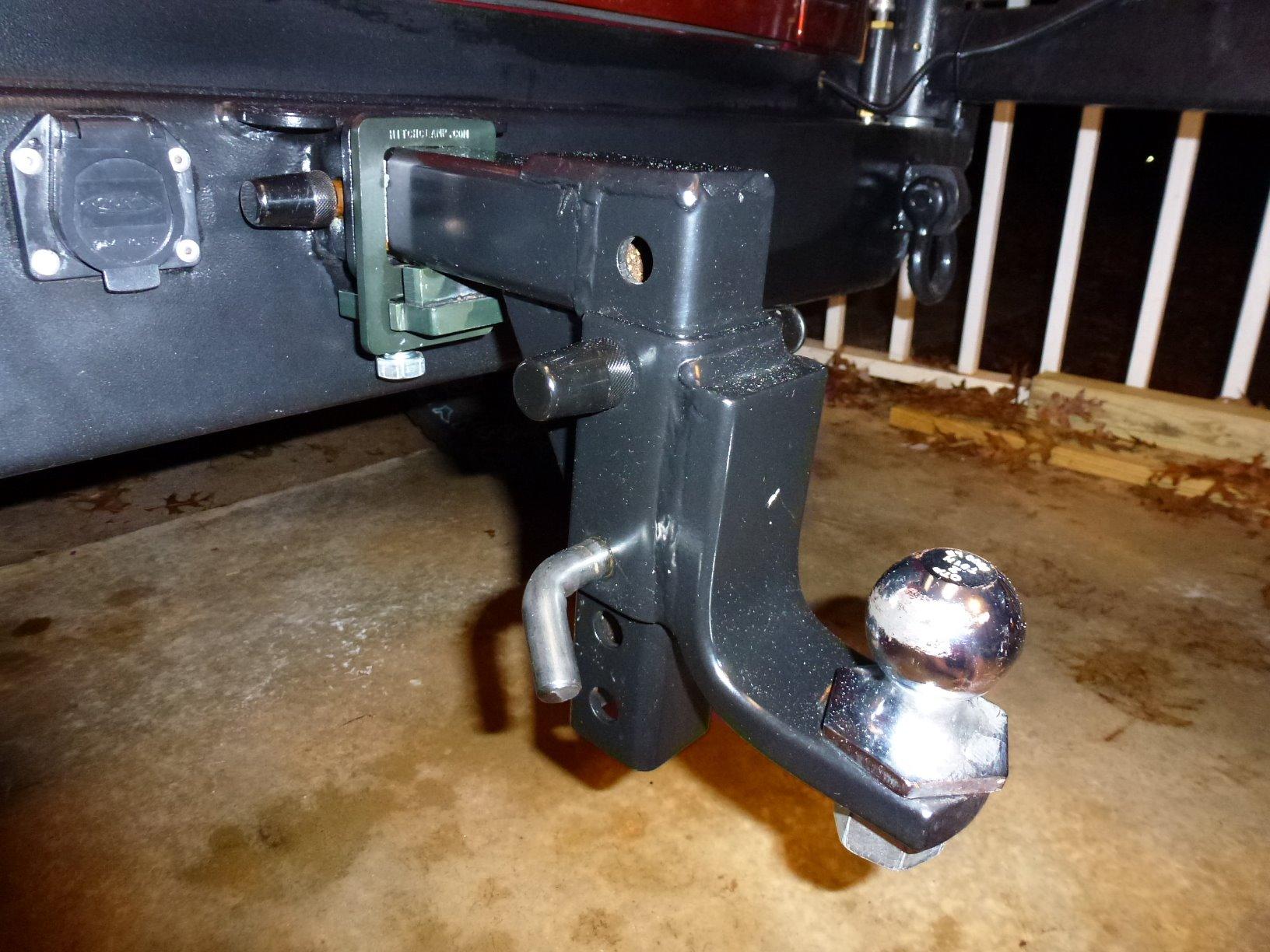

10. OPENROAD TH-003 Adjustable Ball Mount – Best for Large Drop or Rise
OPENROAD Adjustable Hitch Ball Mount with 2″ Ball for 2-Inch Receiver
9-1/2-inch drop and 8-1/4-inch rise
7500 lb GTW, 750 lb tongue weight
2-inch ball included
Pros
- 9-1/2-inch drop and 8-1/4-inch rise cover large height differences
- Lock and two keys included for theft resistance
- Works with bumpers
- ag equipment and dual receiver extenders
- Powder coat resists rust
- UV and scuffs
Cons
- Ball nut needs tightening with a tool after unpacking
- Heavy at 17.2 lb
- Fixed 2-inch ball size only
- Verify receiver size before buying
The widest single drop option among the adjustable mounts here belongs to the OPENROAD TH-003, with a 9-1/2-inch drop and an 8-1/4-inch rise. That range covers lowered crossovers, EVs and lifted trucks without swapping hardware.
It is rated to 7,500 lb gross trailer weight and 750 lb tongue weight, and the 2-inch ball is included. Unlike most ball mounts here, it also fits rear bumpers, agricultural equipment and dual receiver extenders of the same size.
Owners rate it 4.6 stars from 882 reviews and single out the included combination lock with two keys. The black powder coat is repeatedly praised for handling rust, corrosion, UV exposure and scuffs without extra care.
There is one setup step worth knowing: the ball nut needs tightening with a tool after unpacking. Buyers mention responsive after-sales service as a bonus.
Who it fits well
This is the pick for someone whose vehicle and trailer heights are far apart, or who swaps between a lowered crossover and a full-size truck. Forum discussions about large-drop mounts on lowered vehicles usually end at a number like this one.
It is also versatile off-road and on-farm, where the same mount may go into a bumper or an ag receiver.
Where it falls short
The fixed 2-inch ball rules it out for 2-5/16-inch couplers. At 17.2 lb it is a two-handed install, and the ball nut needs a wrench before first use.
Confirm your receiver is genuinely 2 inches, because a 2-1/2-inch receiver will swallow the shank’s clearance and leave a bad fit.
11. Rhino USA HITCH DROP Adjustable Mount – Best Aluminum Mount for Heavy Trailers
Rhino USA Adjustable Trailer Hitch (2in Receiver) – 6in Drop/Rise
6-inch drop for 2-inch receivers
8000 lb and 12500 lb ratings
Aluminum body with powder coat
Pros
- 12500 lb rating on the 2-5/16-inch ball
- Aluminum body resists rust better than steel alternatives
- Double anti-theft locking hitch pins included
- Lifetime warranty and replacement program
Cons
- Lowest average rating here at 4.5 stars
- Premium price for the drop-and-rise format
- Aluminum feels less rigid than steel under heavy loads
- Only works with 2-inch receivers
The Rhino USA mount pairs a 6-inch drop with the highest capacity in this group. The 2-5/16-inch ball is rated to 12,500 lb and the 2-inch ball to 8,000 lb, and you can reverse the ball to swap between them.
The body is aluminum with a black powder coat, which is the reason owners in snow and salt country like it. It is designed for Class III and Class IV 2-inch receivers sitting 18 to 20 inches off the ground.
Two weatherproof anti-theft locking hitch pins come in the box, and the lifetime warranty includes a real replacement program that owners repeatedly mention as a reason to stay with the brand.
Owners also appreciate that the 6-inch drop suits leveled or stock-height half-ton trucks and SUVs without a separate riser. At 4.5 stars from 860 reviews, it carries the lowest average rating in this roundup, with a larger share of critical reviews than the others.
Who it fits well
This one makes sense for heavier trailers where tongue weight climbs and for anyone towing through winter road treatment. The aluminum body simply does not have the rust problem steel mounts have.
If you want to move between two ball sizes without buying a second mount, the reversible 2-5/16-inch ball handles the heavy trailer while the 2-inch side covers the utility trailer.
Where it falls short
The 4.5-star average is the signal to weigh. Owners point to build feel and price as the areas of concern, and aluminum does not feel as rigid as steel when you are levering a heavy coupler into place.
It fits 2-inch receivers only, and the drop is fixed at 6 inches rather than adjustable across a range.

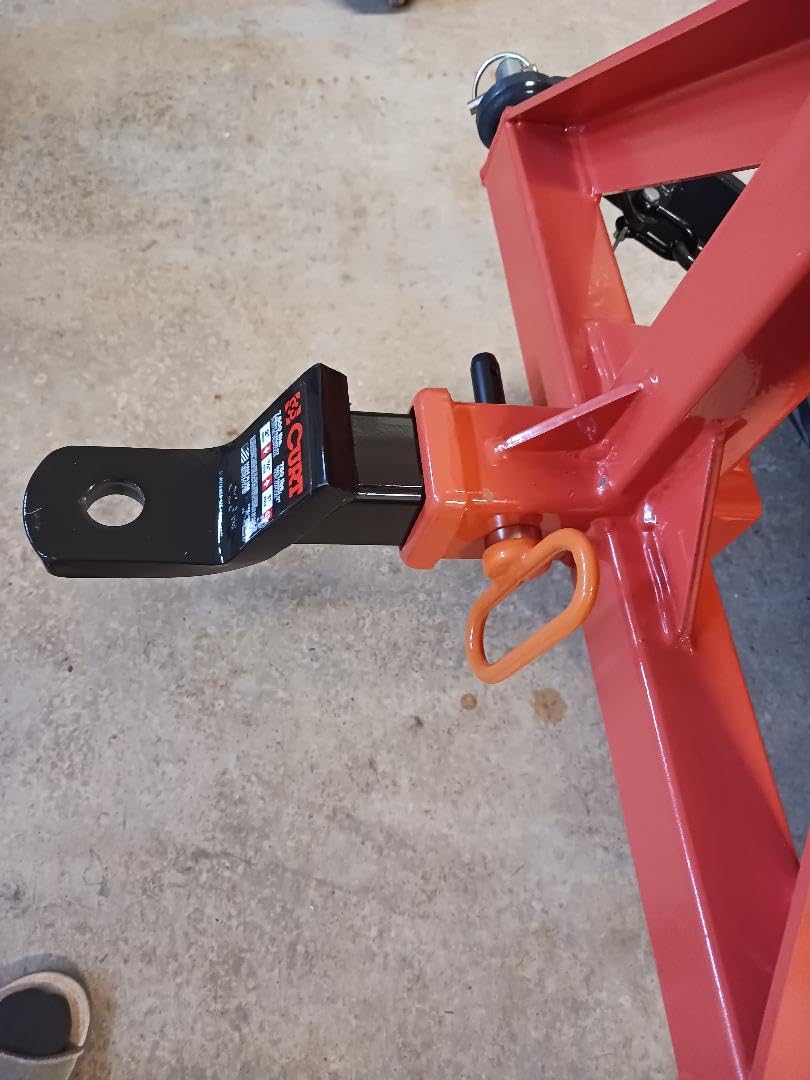

12. CURT 45030 Class III Ball Mount – Best Standard Low-Profile Mount
CURT Manufacturing 45030 Class III 2″ Ball Mount
7500 lb GTW and 750 lb tongue weight
2-inch drop and 3/4-inch rise
1-inch ball hole
Pros
- 4.8 stars from more than 2100 reviews
- Low-profile drop suits most stock-height vehicles
- High-strength carbon steel with gloss black powder coat
- Rounded shank installs in seconds
Cons
- Ball and hitch pin both sold separately
- 1-inch ball hole only accepts older 1-inch shank balls
- 2-inch drop offers little clearance on lowered or lifted vehicles
- No height adjustment
The 45030 is the plain Class III workhorse: 2-inch drop, 3/4-inch rise, a 2-inch by 2-inch shank and a 7,500 lb gross trailer weight rating. It is the part most people end up with when they keep an existing receiver and buy the cheapest thing that fits.
Owners rate it 4.8 stars from 2,146 reviews, describing it as dependable, no-frills hardware that holds up in rain, dirt, snow and road salt. Item dimensions are 3 by 12 by 4 inches.
The gloss black powder coat over carbon steel is what handles the weather here. The rounded shank makes installation fast, which matters when you are swapping mounts between vehicles.
The catch is what you have to buy alongside it. The ball is sold separately, the hitch pin is sold separately, and the 1-inch ball hole takes older 1-inch shank balls rather than the modern 2-inch or 2-5/16-inch standards.
Who it fits well
It works for small utility, stock-height and light boat trailers behind a stock-height vehicle, and for anyone who wants a plain fixed mount without adjustment hardware. Replacement buyers on an older setup often land here.
If your existing receiver is already at the right height, this is the least complicated part that does the job.
Where it falls short
Two inches of drop gives very little clearance on lowered vehicles or room under a lifted truck. With no height adjustment, a vehicle change means a new mount.
And because the ball and the pin are both separate purchases, the total cost to get towing is higher than the mount alone suggests. Buyers who want one box should look at a loaded design instead.
How to Measure for Rise or Drop in Three Steps
Rise and drop is the difference between the height of your receiver hitch and the height your trailer coupler needs. Measure the receiver, measure the coupler, then buy the mount that matches the difference.
Measure the receiver top. Park on level ground and measure from the pavement to the top surface of the receiver tube, where the ball will sit. Write it down. On many half-ton trucks this lands between 18 and 22 inches.
Measure the coupler opening. Measure from the pavement to the center of the trailer coupler socket, which is where the ball needs to reach. Many travel trailers fall between 17 and 21 inches.
Subtract. If the receiver measures higher than the coupler, you need drop equal to the difference. If the coupler sits higher, you need rise. A 4-inch difference on a stock truck and a standard travel trailer is the most common setup in this roundup.
One more check before you order: confirm the ball diameter the coupler accepts. A 2-inch ball fits a 2-inch bore, a 2-5/16-inch ball fits heavy and boat trailer couplers, and a 1-7/8-inch ball fits small utility and old equipment couplers.
How to Choose the Right Ball Mount
Match the receiver first. Most mounts in this roundup fit a 2-inch receiver. A 2-1/2-inch receiver needs a heavier shank and a mount rated for it, and a 1-1/4-inch Class I receiver is a different hardware family entirely. Verify your receiver opening before anything else.
Match the ball to the coupler. The 1-7/8-inch ball is rated for small utility and equipment trailers. The 2-inch ball is the North American standard for most travel and utility trailers. The 2-5/16-inch ball is for boat trailers, dump trailers and heavier equipment. Buying the wrong ball is the most common hitch-up failure, and it is only discovered when the coupler will not seat.
Check tongue weight, not trailer weight. Tongue weight is normally 10 to 15 percent of the loaded trailer weight, and the receiver and ball mount both have to carry it. A mount rated for 7,500 lb gross trailer weight is generally rated around 750 lb tongue weight. If your trailer is heavy enough to exceed that, you have outgrown a plain ball mount and need a weight distribution hitch instead.
Know when to move past a ball mount. Truck forum consensus is consistent: a plain ball is fine for lighter trailers and shorter trips, while a weight distribution hitch earns its place with heavier trailers and long highway runs because it spreads load across the axle and stabilizes sway. Our 10 Best Equatorial Mounts for Deep Sky Imaging Tested covers a similar decision in a completely different field: pick the tool that matches the load.
Fixed or adjustable. If you tow one trailer behind one stock-height vehicle and the coupler sits within an inch or two of where you need it, a fixed mount is simpler, cheaper and lighter. If you tow more than one trailer, switch vehicles, or cannot get the coupler latch fully closed, spend the money on an adjustable mount. The adjustment only helps if you actually measure before you buy.
Single ball or tri-ball. A tri-ball carries 1-7/8-inch, 2-inch and 2-5/16-inch balls on one shank, which is the whole argument for one if you own more than one trailer. The tradeoff is weight and a fixed drop.
Material and finish. Steel is stiffer and tolerates abuse better. Aluminum resists corrosion, which matters in road salt and coastal air, but can feel less solid under load. Powder coat over an e-coat holds up better than paint alone, and chrome-plated balls clean up easily and resist surface rust.
Stop the rattling and bouncing. The bouncing complaint in towing forums almost always traces to one of three things: a dry coupler socket, a worn or pitted ball, or a mount without anti-rattle hardware. Grease the coupler socket with the grease the trailer manufacturer specifies before every tow, check the ball for rust pits and flat spots, and if the mount has no anti-rattle device, an insert or clamp between the shank and the receiver tube takes care of the rest.
Pre-tow checklist. Confirm the ball and coupler are the same diameter. Confirm the latch closes fully and the safety pin or clip is installed. Confirm the hitch pin goes through both holes with the clip or lock fitted. Cross the safety chains under the tongue and connect them to the rated points on the vehicle. Re-torque the ball nut on any mounted ball. Check tire pressure and lights. Nothing on this list is difficult, and every item prevents a problem that is expensive on the shoulder of a highway.
Frequently Asked Questions
Are trailer hitches universal?
No. Receiver openings come in 1-1/4 inch, 2 inch and 2-1/2 inch sizes, and hitch classes I through V carry different weight ratings. A 2-inch ball mount fits a 2-inch receiver only, and the mount must also be rated for the tongue weight of the trailer you tow. Always check your vehicle manual and your trailer GVWR before buying.
What is the difference between a hitch ball and a ball mount?
The hitch ball is the ball itself, usually welded to a threaded shank. The ball mount is the bracket that slides into your receiver hitch and holds that ball at the correct height. You buy the mount for rise, drop and load rating, and you buy the ball for the diameter your trailer coupler accepts.
What size hitch ball do I need?
A 2-inch ball fits most North American travel and utility trailer couplers. A 1-7/8-inch ball fits small utility and older equipment couplers, and a 2-5/16-inch ball fits heavy travel trailers, boat trailers and dump trailers. Measure your coupler bore or check the trailer GVWR label before ordering.
How do I know what drop hitch I need?
Measure from the pavement to the top of your receiver tube, then measure from the pavement to the center of your trailer coupler socket. The difference is your drop if the receiver is higher, or your rise if the coupler is higher. A common stock truck and standard travel trailer pairing lands near a 4-inch difference.
Can a ball mount increase towing capacity?
No. A ball mount can never raise the towing rating of your vehicle, and it can never exceed the rating of the receiver it slides into. The lowest rating in the chain governs, so a high-capacity mount on a lower-rated truck still tows at the truck’s number. Check your vehicle owner’s manual for the true tow rating.
Is an adjustable ball mount better?
An adjustable mount is better when you tow more than one trailer, use more than one vehicle, or cannot get the coupler latch fully closed with a fixed mount. If you tow one trailer behind one stock-height vehicle and the heights already line up, a fixed mount is lighter, simpler and cheaper. Measure first, then decide.
Final Verdict
For most people reading this, the MaxxHaul 70067 is the best trailer hitch ball mount in 2026 because eight drop and rise positions solve the problem that trips up nearly every first-time owner: getting the geometry right without a second purchase. Its 4.6-star average across 5,776 reviews backs that up.
If you tow heavier than 10,000 lb or need both ball diameters, the CURT 45900 dual-ball channel mount is the stronger long-term buy. If you want one box with the ball already installed, the CURT 45056 is the simplest answer, and the B&W Tow & Stow covers every ball size you are likely to meet.
Whichever you choose, measure your receiver height and coupler height before you order, match the ball to the coupler bore, and grease the socket before every tow. That last habit alone fixes more bouncing trailers than any mount on this list.
