A lifted truck tows differently than a stock one, and most owners find that out the first time a trailer’s nose climbs toward the sky. Every inch of lift raises the hitch receiver, and a trailer that used to sit level now rides nose-high, which loads the rear axle harder, cuts ground clearance under the coupler and adds sway.
An adjustable drop hitch fixes that by putting the ball back where the coupler needs it. It stacks and pins shank sections between your receiver and the ball, so you can raise or lower the ball in an inch at a time instead of buying a new mount every time the truck or the trailer changes. That makes it the single most useful towing upgrade for a lifted half-ton, three-quarter-ton or dually, and the reason we built this guide to the best adjustable drop hitches for lifted trucks in 2026.
Before you read further, get the one number that decides your purchase. Measure the height of your hitch receiver from the ground and the height of your trailer coupler from the ground. The gap between those two numbers is your required drop. If the receiver measures 26 inches and the coupler sits at 18 inches, you need 8 inches of drop and a 6 inch adjustable unit will leave you short. Most 4 inch lifts need roughly 4 inches of drop and most 6 to 8 inch lifts need 6 to 10 inches.
We went through ten adjustable drop hitches rated for lifted trucks and compared them on four things: the drop and rise range, receiver size fit, published weight capacity, and how well the reviews describe the fit and finish after real towing. Everything below reflects the manufacturer specifications and the owner feedback attached to each product, not spec-sheet marketing alone.
Table of Contents
- Top 3 Adjustable Drop Hitches for Lifted Trucks in 2026
- All 10 Best Adjustable Drop Hitches for Lifted Trucks
- 1. B&W Tow & Stow Adjustable Ball Mount – Best Overall
- 2. GEN-Y Hitch Mega-Duty 6 Inch Drop Hitch – Best for Heavy Duty
- 3. Rhino USA 10 Inch Drop Hitch – Best for 6 to 8 Inch Lifts
- 4. Tlvuvmo 6 Inch Adjustable Drop Hitch – Best All-In-One Package
- 5. XPE Adjustable Tri-Ball Drop Hitch – Best for Quiet Towing
- 6. GWTAUTO Adjustable Tri-Ball Drop Hitch – Best for Mixed Trailer Fleets
- 7. METOWARE 2.5 Inch Aluminum Adjustable Hitch – Best for a Rust-Resistant Build
- 8. Geteen Adjustable Tri-Ball Drop Hitch – Best for 7 Inches of Drop With a Lock
- 9. Koerdo 6 Inch Drop and Rise Hitch – Best for 2 Inch Receivers
- 10. METOWARE 2 Inch Aluminum Adjustable Hitch – Best Lightweight Build for Half-Tons
- How to Measure the Drop You Actually Need
- Ground Clearance, Tailgate Clearance and Towing Safety
- Frequently Asked Questions
- Which Adjustable Drop Hitch Should You Buy
Top 3 Adjustable Drop Hitches for Lifted Trucks in 2026
B&W Tow & Stow…
- 5 inch drop for 2.5 inch receivers
- Tri-ball 1-7/8 and 2 and 2-5/16 inch
- Rotates under the truck
- Alloy steel
- limited lifetime warranty
GEN-Y Mega-Duty 6 Inch Drop
- 21000 lb GTW and 3000 lb tongue weight
- 3 height positions
- 2.5 inch receiver
- 45 lb solid alloy steel
Rhino USA 10 Inch Drop
- 10 inch drop and rise
- 2.5 inch Class 5 receiver
- 18500 lb on the 2-5/16 inch ball
- Aluminum body with locking pins
All 10 Best Adjustable Drop Hitches for Lifted Trucks
Eight of these ten are built for 2.5 inch receivers on three-quarter-ton and one-ton trucks, and two fit the 2 inch receivers found on half-tons. Read the receiver column carefully, because that single dimension decides whether a hitch works at all.
| Product | Specs | Action |
|---|---|---|
| B&W Tow & Stow Adjustable Ball Mount TS20048B |
|
Check Latest Price |
| GEN-Y Hitch Mega-Duty 6 Inch Drop Hitch GH-623 |
|
Check Latest Price |
| Rhino USA Adjustable Trailer Hitch 10 Inch Drop |
|
Check Latest Price |
 Tlvuvmo 6 Inch Adjustable Drop Hitch for 2.5 Inch Receiver |
|
Check Latest Price |
 XPE Adjustable Tri-Ball Drop Hitch 6 Inch Drop |
|
Check Latest Price |
 GWTAUTO Adjustable Tri-Ball Drop Hitch 6 Inch Drop |
|
Check Latest Price |
 METOWARE 2.5 Inch Aluminum Adjustable Hitch 6 Inch Drop |
|
Check Latest Price |
 Geteen Adjustable Tri-Ball Drop Hitch 7 Inch Drop |
|
Check Latest Price |
 Koerdo 6 Inch Drop and Rise Adjustable Hitch |
|
Check Latest Price |
 METOWARE 2 Inch Aluminum Adjustable Hitch 6 Inch Drop |
|
Check Latest Price |

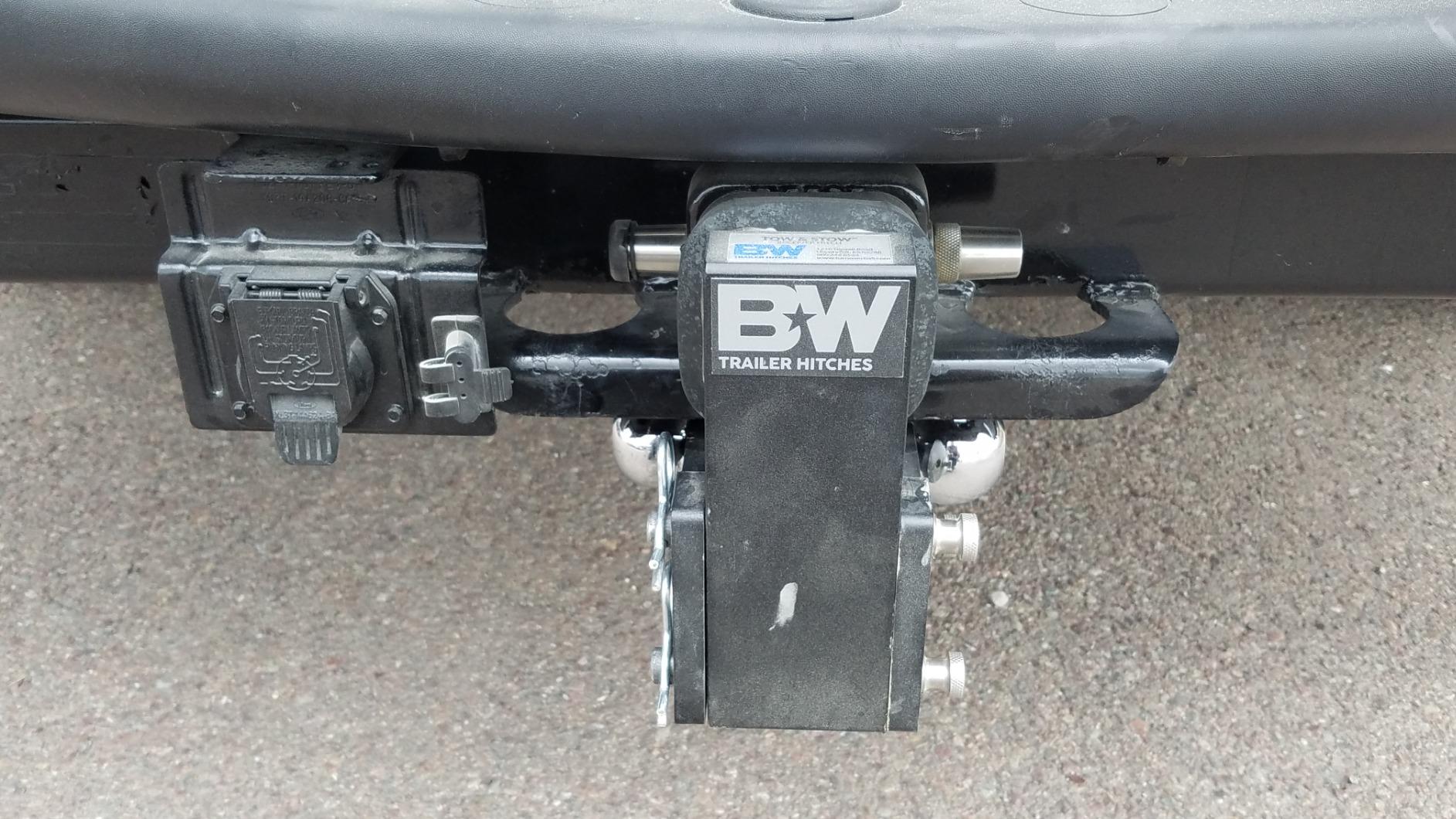

1. B&W Tow & Stow Adjustable Ball Mount – Best Overall
B&W Trailer Hitches Tow & Stow Adjustable Trailer Hitch Ball Mount – Fits 2.5″ Receiver, Tri-Ball (1-7/8″ x 2″ x 2-5/16″), 5″ Drop, 18,000 GTW – TS20048B
5 inch drop for 2.5 inch receivers
Tri-ball 1-7/8 and 2 and 2-5/16 inch
18000 lb GTW
Alloy steel, 29.8 lb
Pros
- Rotates under the truck when not towing
- Alloy steel with e-coat and powder coat
- Three ball sizes on one unit
- Anti-theft lock blocks removal
- Limited lifetime warranty
Cons
- Heavy at 29.8 lb so installation takes two hands
- May need drilling for clearance on some lifted setups
This is the hitch to beat for most lifted trucks, and the reason is simple: it does three jobs at once. It drops the ball for a lifted truck, it rises for a low-hanging gooseneck or fifth-wheel ball, and it rotates under the truck so the ball is not the first thing you kick in the driveway or back into the garage.
Reviewers describe the pin operation as smooth and the build as noticeably rigid, and the most common comment is that the adjustment turned an unsafe jerky first tow into a smooth one. Several owners run more than one trailer and rely on all three ball sizes from this single unit.
Five inches of drop suits a truck with a 4 inch lift or a mildly modified receiver. Owners with a full 6 inch or larger lift typically reach for a deeper unit like the Rhino USA or the Gen-Y in this roundup instead.
The tri-ball pattern gives you 1-7/8 inch, 2 inch and 2-5/16 inch balls on one unit, so a small utility trailer and a heavy bumper-pull can share the same hitch. The anti-theft design matters on a hitch that hangs where a thief can reach it, and the anti-drift feature keeps the pins from walking out over highway miles.
The trade-offs are weight and drilling. At 29.8 pounds it is one of the heavier hitches here, and owners on tight chassis configurations report occasionally needing to modify hardware for clearance. On a truck with room behind the bumper, neither issue shows up.
Who this hitch suits
Three-quarter-ton and one-ton owners who tow more than one trailer type, and anyone who wants the ball to disappear under the truck between trips. The lifetime warranty and American steel construction make it the safest long-term buy in the group.
Towing forum consensus keeps naming B&W, Weigh Safe and BulletProof as the adjustable ball mount brands worth paying for, and the long review history here backs that up with consistent feedback on build quality.
Who should skip it
Owners with a bare 6 inch lift or taller, because 5 inches of drop leaves you short and a nose-high trailer is the problem you bought a hitch to fix. Half-ton trucks with 2 inch receivers are also the wrong fit, since this one is built for 2.5 inch receivers.
If you tow on steep driveways, boat ramps or rock trails where every inch of ground clearance matters, a 10 inch drop unit will leave you with more usable clearance than this one.
2. GEN-Y Hitch Mega-Duty 6 Inch Drop Hitch – Best for Heavy Duty
GEN-Y Hitch Mega-Duty 6″ Drop Hitch Ball Mount 2.5″ Receiver 21,000 lbs USA
6 inch drop and rise on a 2.5 inch receiver
21000 lb GTW and 3000 lb tongue weight
3 height positions
45 lb solid alloy steel
Pros
- Highest published GTW in the roundup
- Three quick-adjust positions
- Owners call it nearly rigid
- Solid non-hollow shank
- Locking stainless pins included
Cons
- Sold as hitch body only so ball mounts cost extra
- Very heavy at 45 lb
- Not rated for winching

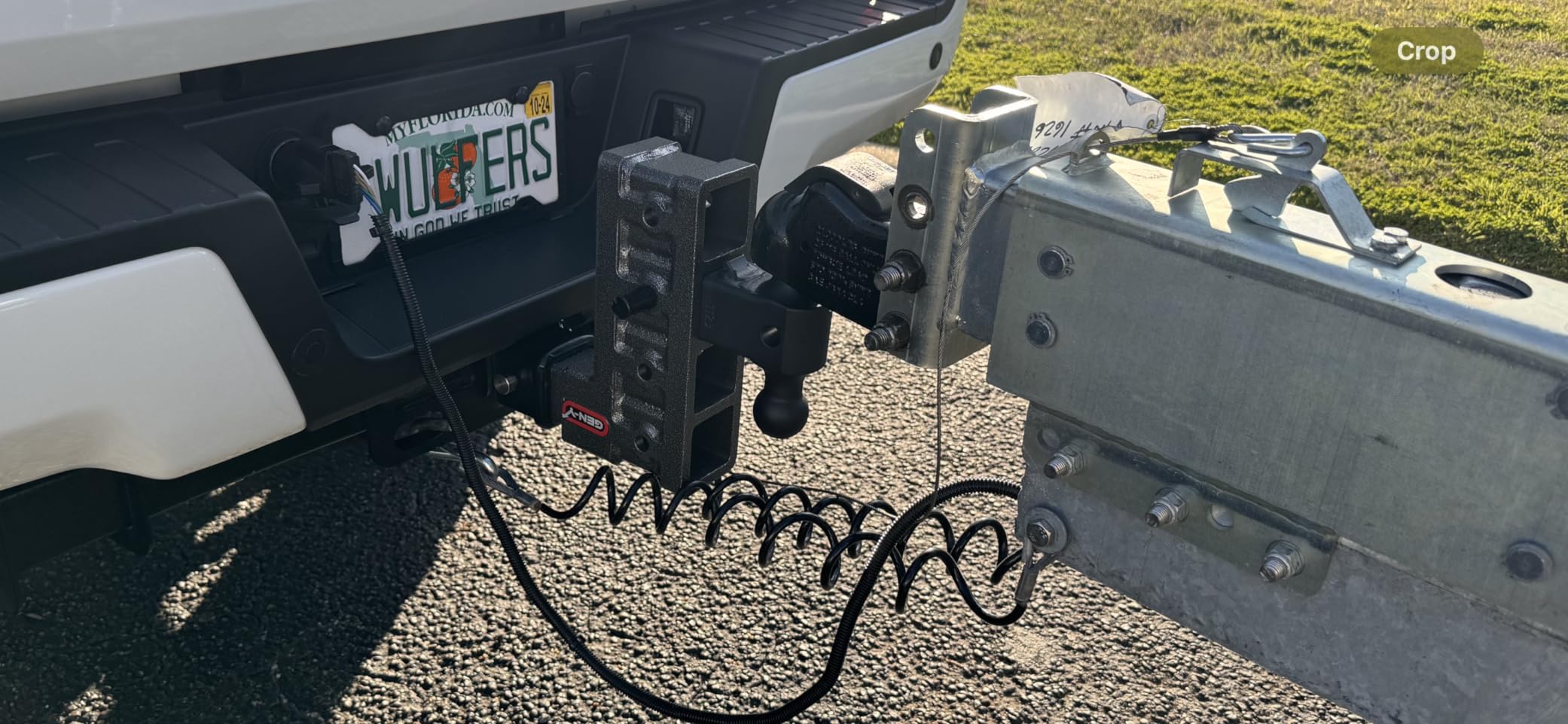

If you tow heavy, this is the strongest hitch in the group by published rating, and reviewers with F-250 and F-350 class trucks describe it as built like an anvil with virtually no flex. The 21,000 lb GTW and 3,000 lb tongue weight figure puts it well past anything a half-ton would ever need.
Owners running big tires and tall lift builds credit it with fixing a jerky, porpoising trailer that a fixed mount could not. The three height positions mean switching between two trailers takes a pin pull rather than a whole new mount.
The construction details are what separate this from the cheaper imports in the roundup. The shank is solid steel rather than hollow tubing, and the pin holes are anti-wear so the adjustment stays consistent over years of use rather than loosening up.
Six inches of drop handles a truck with roughly a 4 to 6 inch lift. Flipping the unit into a rise configuration moves the ball back up when you switch to a gooseneck or fifth-wheel ball that sits high.
One reviewer noted that the keeper on the 2-5/16 inch ball can deform if you use it as a pintle hook, which is a fair warning for people running mixed attachment types on the same unit.
Who this hitch suits
Dually and three-quarter-ton owners who routinely pull more than 15,000 lb or who care most about zero flex under load. It also suits anyone with mixed trailers who wants three quick positions instead of a single fixed height.
If you winch, this is not the right hitch, since it is not rated for winching. Flat towing stays within a limited drop and rise range as well, so check that number before you commit.
Who should skip it
Buyers who want a complete ball mount out of the box. This ships as the hitch body alone, so the dual ball mount or pintle lock attachment is a separate purchase, and the total cost lands above what most people expect.
At 45 pounds it is also the heaviest unit here, which is real work to lift into a high mounted receiver on a lifted truck. Budget for a second pair of hands.
3. Rhino USA 10 Inch Drop Hitch – Best for 6 to 8 Inch Lifts
Rhino USA Adjustable Trailer Hitch (2.5in Receiver) – 10in Drop/Rise
10 inch drop for receivers 24 to 26 inch high
2.5 inch Class 5 receiver
8000 lb on 2 inch ball and 18500 lb on 2-5/16
Aluminum with locking pins
Pros
- Deepest drop in the roundup
- Precision-milled fit with less receiver slack
- Aluminum resists rust
- Double weatherproof locking pins
- Quick height changes between trailers
Cons
- A small amount of play remains in the receiver fit
- One buyer received a hitch without the locking pins and support was slow
This is the unit to buy if you have a 6 to 8 inch lift, because 10 inches of drop is the deepest adjustment in the roundup. It is engineered for receivers sitting 24 to 26 inches off the ground, which is exactly the range a properly lifted three-quarter-ton or one-ton lands in.
The aluminum body is the reason owners who switched from steel brands notice something immediately: less weight to wrestle into the receiver and no surface rust after a winter of salt spray. Several owners describe it as replacing four separate hitches across a mixed trailer fleet.
Ball ratings are split by size. The 2 inch ball handles 8,000 lb and the reversible 2-5/16 inch ball handles 18,500 lb GTW, so a light utility trailer and a loaded travel trailer can both be handled by the same unit after a quick flip.
Fit is the standout review theme. Owners coming off B&W and Curt mounts single out the tighter receiver engagement and quicker adjustment, and Rhino covers Ram, Silverado HD and pre-2015 Powerstroke trucks explicitly.
The complaints are narrow but worth knowing: a trace of play remains even in a precision-milled fit, and one buyer reported a hitch that arrived without its locking pins with slow support behind it.
Who this hitch suits
Owners of a 6 inch, 8 inch or taller lift kit on a 2.5 inch receiver who need real drop rather than a token adjustment. It is also a good match for winter and salt-belt climates where steel hitches tend to pit and bleed.
If you plan to add more lift later, buying the deep version now avoids the second purchase that owners on towing forums describe as the most common mistake with drop hitches.
Who should skip it
Owners of a half-ton with a 2 inch receiver, because this fits 2.5 inch receivers only. Also skip it if your driveway has a sharp lip or you tow on rocky trails, since 10 inches of drop puts the ball low in the arc.
Buyers who plan to use a pintle hook heavily should know the ball ratings are the primary load figures, and pintle duty deserves a purpose-built pintle mount.
4. Tlvuvmo 6 Inch Adjustable Drop Hitch – Best All-In-One Package
Tlvuvmo Drop Hitch for (2.5” Receiver), 6in Adjustable Trailer Hitch
6 inch drop and rise on 2.5 inch receivers
2 inch ball 8000 lb and 2-5/16 ball 18500 lb
Aluminum magnesium frame
18.7 lb
Pros
- Largest review base in the roundup
- Balls and two keyed locks included in one box
- Light at 18.7 lb and rust resistant
- Quick hole to hole height changes
Cons
- Fits 2.5 inch receivers only
- Some reviewers question the alloy durability claims
This is the value pick, and it wins on the thing that trips people up most often: everything arrives in one box. Both balls, two anti-theft pin locks and six keys come with the hitch, so there is no second order to place before you can tow.
The aluminum-magnesium frame keeps the whole unit at 18.7 pounds, well under the 30 pounds a comparable steel tri-ball weighs. That matters more than it sounds when you are lifting a hitch into a receiver sitting 26 inches off the ground on a lifted truck.
Six inches of drop and six inches of rise give plenty of range for a 4 to 6 inch lift, and the hole-to-hole design means you change height in minutes at a trailhead or a state park camping pad.
The dual ball head is integrated into the frame rather than mounted on a separate ball plate, which removes one connection point that could loosen. The 2 inch ball covers 8,000 lb and the 2-5/16 inch ball covers 18,500 lb.
The finish is hand-sanded and powder coated, with chrome-plated steel balls that stay smooth and firm. Dimensions of 9.27 by 8.27 by 3.54 inches mean it stores compactly when not in use.
Who this hitch suits
Three-quarter-ton owners on a budget who want the full package in a single purchase, and anyone who would rather not wrestle a heavy steel unit into a high receiver. Buyers in wet or snowy climates will appreciate the corrosion resistance.
This is also the model with the deepest owner feedback of any hitch in the roundup, so the failure modes and the strengths are both well documented before you buy.
Who should skip it
Half-ton trucks with 2 inch receivers, which this will not fit, and buyers who pull near the top of its published rating on a regular basis. A few reviewers questioned the alloy durability claims, so if you routinely tow maximum loads, a solid steel body is the safer bet.
The recurring warning across reviews is simple: measure your receiver before ordering and confirm it measures 2.5 inches.
5. XPE Adjustable Tri-Ball Drop Hitch – Best for Quiet Towing
XPE Adjustable Trailer Hitch Fits 2.5-Inch Receiver, Heavy Duty Tow Hitches (18500 LBS GTW) 6 Inch Drop Truck Hitch Tri-Ball Mount with Hook (1-7/8″ x 2″ x 2-5/16″)
6 inch drop on a 2.5 inch receiver
Tri-ball 1-7/8 and 2 and 2-5/16 inch
18500 lb max trailer weight
Three shock absorbing rubber pads
Pros
- Rubber pads give the quietest tow in the roundup
- Welds are consistently clean
- Installs in 3 to 5 minutes
- T and handle and set screw remove rattle
- Tri-ball plus a hook attachment
Cons
- Main pin is not lockable and a roll pin has been reported to fail
- Adjustable ball section can rattle with no trailer attached
Noise is the reason this one stands apart. Three shock-absorbing rubber pads between the moving sections kill the metallic clank that most adjustable hitches send up the frame and into the cab, and reviewers describe the result as noticeably silent.
It is also a tri-ball with a hook, so you get 1-7/8 inch, 2 inch and 2-5/16 inch balls rated at 10,000, 14,000 and 17,000 lb respectively. Maximum trailer weight is 18,500 lb with 1,850 lb of tongue weight.
The L-shaped foldable structure goes in and out in three to five minutes once you understand the sequence, which makes it easy to swap between a small trailer and something heavier without a workshop visit.
Who this hitch suits
Owners who drive long highway miles with a trailer and want the least amount of vibration transmitted into the cab. Shop and rental operators towing several trailer types benefit from the tri-ball plus hook combination.
Buyers who need a lockable pin should skip past this one. The main pin has no lock, and one reviewer reported the bottom roll pin failing, though another owner welded a groove into the pin to solve the security issue themselves.
Who should skip it
Half-ton trucks with 2 inch receivers, because this is built for 2.5 inch receivers. Also worth avoiding if you leave the hitch exposed and expect a finish that stays clean, since surface wear shows on the coating after heavy use.
The adjustable ball section can rattle slightly with no trailer attached. That is a cosmetic annoyance rather than a safety problem, but owners who are sensitive to sound will prefer the tighter fit of a machined body.
6. GWTAUTO Adjustable Tri-Ball Drop Hitch – Best for Mixed Trailer Fleets
GWTAUTO Adjustable Trailer Hitch, Tri-Ball (1-7/8″ x 2″ x 2-5/16″) Drop Hitch, Fits 2.5-Inch Receiver, 6 Inch Drop Hitch, 18500 LBS GTW Tow Hitch for Heavy Duty Truck, Black, Solid Ball Mount
6 inch drop on a 2.5 inch receiver
Rotating tri-ball 1-7/8 and 2 and 2-5/16 inch
18500 lb pull force
Iron construction, 19.69 kg
Pros
- Solid iron body handles heavy hauls
- Vertical pin design resists rattle better than two-horizontal-pin mounts
- Two keyed locks included
- Height adjustment suits mixed fleets
- Built-in screw closes the shank gap
Cons
- Ball section lock is described as finicky
- One report of a cross pin backing out under load
- Finish can rust when left exposed outside
This is the workhorse option for anyone who runs more than one trailer, and shop owners reviewing it like it the vertical pin layout. Instead of two horizontal pins that can walk and clank, the adjustment is held by a single vertical pin, and they report noticeably less rattle under load.
The iron body is heavy at 19.69 kg, which sounds like a drawback until you consider what owners actually tow with it. Feedback describes hauling 10,000 lb loads without complaint, and the build reads as a commercial part rather than a weekend accessory.
A built-in screw and cushioned shim let you tighten the gap between the shank and the receiver with a hex wrench, which removes the hollow knock you normally get from an undersized shank. That single feature fixes more rattles than any amount of tape.
Six inches of drop on a 2.5 inch receiver handles a 4 to 6 inch lift, and the rotating tri-ball means a 1-7/8 inch, 2 inch or 2-5/16 inch coupler all fit from the same unit.
The frosted dark finish resists corrosion from rain, dust and heat reasonably well, though owners who store it outside report eventual surface rust. A coat of protectant on the ball and shank extends its life noticeably.
Who this hitch suits
Contractors, landscapers and shop owners who switch between utility trailers, dump trailers and equipment trailers in the same week. The tri-ball and 18,500 lb pull force cover the wide range of couplers those users meet.
If you tow heavy and store the hitch outside, this is a solid choice, though you should treat the finish as a maintenance item rather than a forever thing.
Who should skip it
Owners who want the simplest possible adjustment. The ball section locking mechanism is described as finicky, and one reviewer reported a small cross pin backing out and the ball dropping under load. If your workload is heavy enough for that to happen, a lockable-pin design is safer.
Half-ton trucks with 2 inch receivers are also the wrong match for this model.
7. METOWARE 2.5 Inch Aluminum Adjustable Hitch – Best for a Rust-Resistant Build
METOWARE 2.5” Aluminum Adjustable Trailer Hitch, 6” Drop/Rise,18K GTW
6 inch drop and rise on a 2.5 inch receiver
Adjusts in 1 inch increments
Integrated 2 inch and 2-5/16 inch balls
18000 lb capacity, 8.96 kg
Pros
- Adjusts in 1 inch steps for fine leveling
- Integrated dual balls need no separate ball mount
- Two sets of stainless locks on one key
- 8 rubber O-rings quiet the shank
- Milled corners ease receiver insertion
Cons
- Lock mechanisms take practice to operate
- Color finish fades over time
- Secondary section can rattle despite the washers
The distinguishing feature here is one-inch adjustment increments. Most competitors step in two or three inch holes, which means your trailer ends up slightly nose-up or nose-down no matter which position you pick. One-inch steps let you actually get the coupler level.
Owners who switch between a car hauler and a dump trailer describe that fine adjustment as the feature that made the biggest day-to-day difference, and the machined aluminum gives a precise fit that they contrast favorably with big-box alternatives.
Both hitch balls are integrated into the body, so there is no separate ball plate to loosen or lose. The 2 inch and 2-5/16 inch balls sit on a unit rated to 18,000 lb maximum towing capacity.
Corrosion resistance is handled by an advanced oxide anti-rust finish over premium aluminum, and milled rounded corners help the unit slide into a tight receiver instead of fighting the opening.
Eight rubber O-rings damp the shank-to-receiver contact that normally carries noise up the frame. Two stainless steel locks and all-weather keyhole caps cover theft, and color options include red, blue, black and silver.
Who this hitch suits
Owners who tow trailers with very different bed heights and want the closest thing to a perfectly level coupler. At 8.96 kg it is one of the lighter options here, which helps on a high mounted receiver.
Anyone in a coastal, snowy or salted-road environment gets a hitch that will not pit the way bare steel does. The shared-key locks are convenient when you do not want to carry different keys for the pin and the arm.
Who should skip it
Buyers planning long-term maximum-load service. Owners are split on long-term aluminum fatigue, and pin-hole elongation is a concern with heavy repeated use. A steel body is the conventional answer for constant max-rated towing.
The secondary hitch section can rattle despite the rubber washers, the locks take practice to operate, and the color finish fades faster than owners would like.
8. Geteen Adjustable Tri-Ball Drop Hitch – Best for 7 Inches of Drop With a Lock
Geteen Trailer Hitches, Adjustable Trailer Hitch Ball Mount – Fits 2.5″ Receiver, Tri-Ball (1-7/8″ x 2″ x 2-5/16″), 7″ Drop, 15,000 GTW – GT25073B
7 inch drop and rise on a 2.5 inch receiver
Tri-ball 1-7/8 and 2 and 2-5/16 inch
15000 lb on the 2-5/16 inch ball
Steel with e-coat and powder coat
Pros
- Seven inches of drop is rare at this tier
- Rotates under the truck and blocks arm removal
- Fits a 2.5 inch receiver without play
- Includes a lock for theft deterrence
- Tri-ball changes ball sizes tool-free
Cons

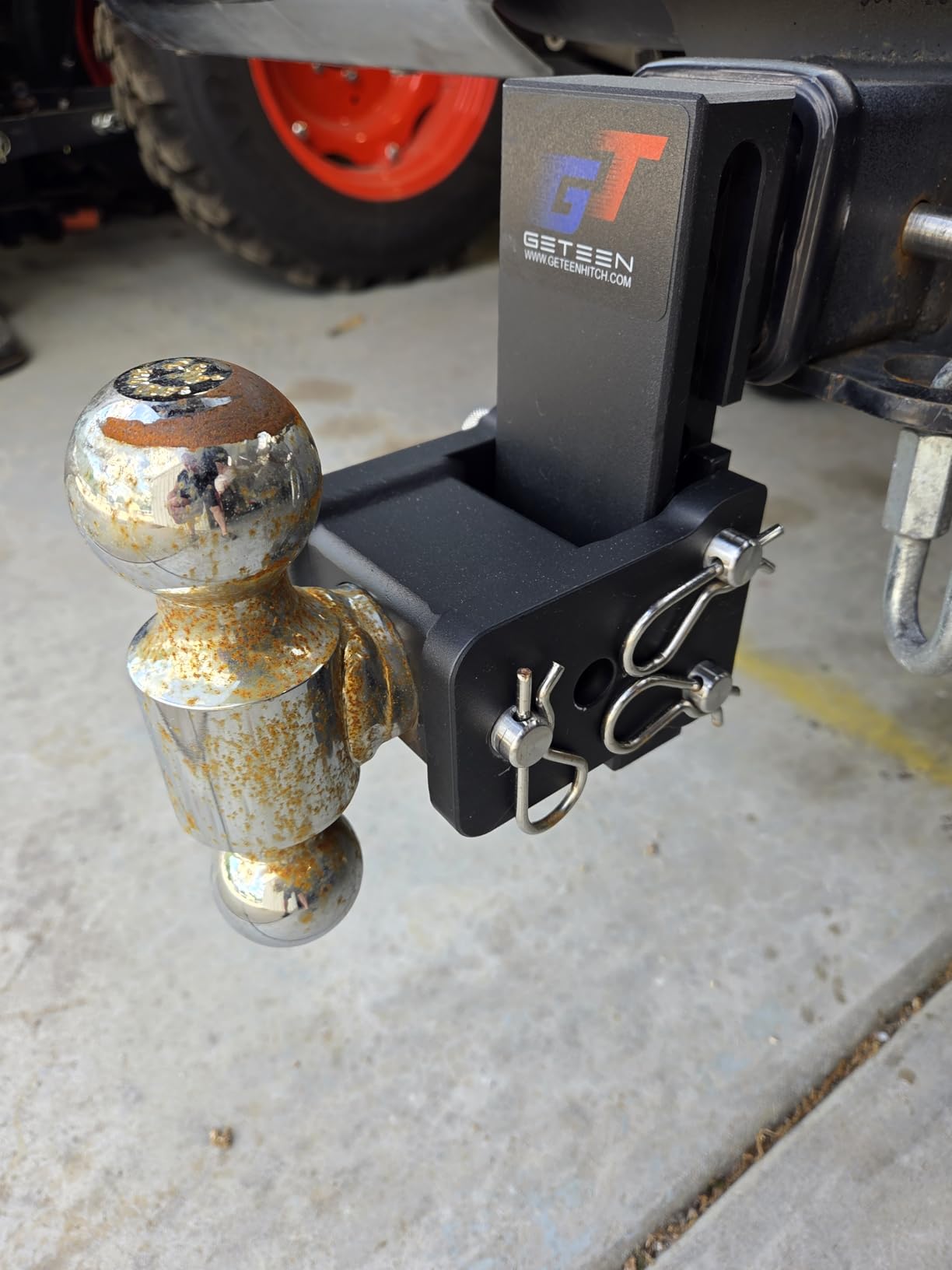

- One buyer received a unit with surface rust on arrival
- Ball tilts slightly under a heavy trailer
- Slop at the ball to shank junction felt while towing
Seven inches of drop is an unusual amount of adjustment, and it lands right in the sweet spot between a 6 inch unit and the 10 inch Rhino USA. That makes it the pick for a 6 inch lift where 6 inches of drop leaves you just a little short.
Owners who lost a premium hitch to theft treat this as a practical replacement, citing similar weight, adjustment range and weld quality to the expensive brands they had before. The included lock is the feature that makes that trade work for them.
The stowable design rotates under the vehicle when you are not towing, and the anti-theft feature blocks removal of the adjustable arm once it is locked into place. Both pins are stainless steel against high-strength steel with an e-coat and black powder coat.
Ball ratings are 15,000 lb on the 2-5/16 inch and 8,000 lb on the 2 inch, so it covers the usual range of bumpers and couplers without needing a second unit.
Overall dimensions of 15.16 by 11 by 7.87 inches are close to the familiar footprint of a familiar premium mount, which is helpful if your undercarriage space is already tight.
Who this hitch suits
Owners on a 6 inch lift who need a little more than 6 inches of drop, and anyone who wants a rotating stowable design with a working lock at the same time. The anti-theft arm lock is what separates it from most designs in this class.
Towing forum owners with a MultiPro tailgate cite stowability and secure locking as the two features they care most about when a hitch hangs in the open.
Who should skip it
Half-ton trucks with 2 inch receivers, since this is built for 2.5 inch receivers only. Buyers who store the hitch outdoors in a wet climate should note the report of a unit arriving with surface rust and light rust on the pins.
Some owners felt slop at the ball-to-shank junction and a slight ball tilt under a heavy trailer. If you tow near the top of the rating most of the time, a machined aluminum body holds position more consistently.
9. Koerdo 6 Inch Drop and Rise Hitch – Best for 2 Inch Receivers
Adjustable Trailer Hitch -Drop Hitch-Tow Hitch with 2 inch Receiver-6inch Drop/Rise, 2″ & 2-5/16″ Ball Hitches for Trucks, 20,000 LBS GTW, Trailer Hitches with Anti-Theft Pin, Black
6 inch drop and rise on a 2 inch receiver
20000 lb on 2-5-16 ball and 15000 lb on 2 inch ball
8mm solid shank
30 lb alloy steel
Pros
- Only 2 inch receiver option with this much capacity
- Adjusts in 1 inch increments
- Anti-rattle kit cuts cab noise noticeably
- Keyed anti-theft pin included
- Owners report hauling a loaded mini excavator
Cons
- Balls are painted and can block trailer light grounding
- One buyer received a bent locking pin
- Only one keyed pin included
If your truck has a 2 inch receiver, this is the most capable option in the roundup by a wide margin. Most adjustable drop hitches on the market are built exclusively for 2.5 inch receivers on three-quarter-ton and one-ton trucks, which leaves half-ton owners with thin choices.
Users switching from a fixed ball mount report a dramatic improvement in ride quality, describing a rough bump-sensitive trailer becoming smooth after the change. The anti-rattle kit of three silencer pads, eight O-rings and removable rubber washers is credited with carrying that improvement into the cab.
The build detail that matters most here is the 8mm shank machined from solid bar rather than hollow tubing, and a ball section machined as one block of steel with welded three-eighth inch plate. Hollow shanks are where cheap adjustable hitches flex.
Six inches of drop and six inches of rise in one-inch increments covers a 4 inch lift comfortably and gives rise capability for gooseneck and fifth-wheel balls. Capacity is 15,000 lb on the 2 inch ball and 20,000 lb on the 2-5/16 inch ball.
At 30 pounds it is heavy, though that weight is honest steel rather than hollow imitation. One owner used it to haul a loaded mini excavator and reported no measurable wear.
Who this hitch suits
Half-ton owners on a 2 inch receiver who want a 2 inch drop rather than settling for a shallow fixed mount. It also suits anyone running equipment trailers, where the solid shank and high capacity ratings matter more than weight savings.
Owners who tow on bad roads will like the extra anti-rattle hardware, since the whole point of the drop hitch is a controlled, quiet tow over distance.
Who should skip it
Buyers who want a factory-finish surface. The balls are painted, and owners report that paint can block the electrical ground path for trailer running lights. A quick pass with sandpaper on the ball circumference solves it, and it is a well-known fix among owners.
Only one keyed pin is included, so if you want every pin on the hitch lockable you will need additional keyed-alike pins. A few buyers also received bent locking pins on arrival, so inspect the package before installing.

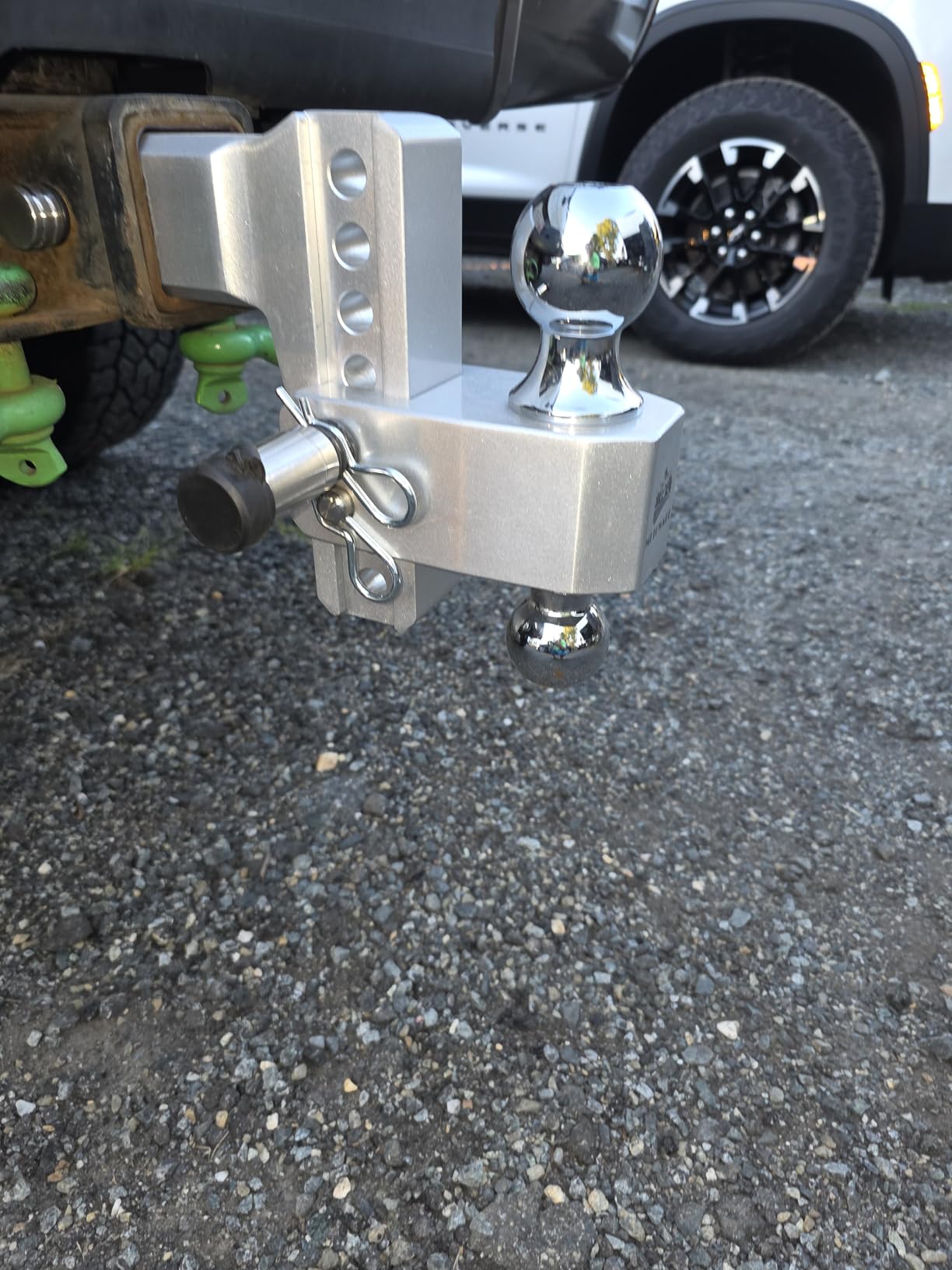

10. METOWARE 2 Inch Aluminum Adjustable Hitch – Best Lightweight Build for Half-Tons
METOWARE Adjustable Trailer Hitch Fits 2″ Receiver, 6″ Drop/Rise 14K GTW
6 inch drop and rise on a 2 inch receiver
14000 lb structural rating
Integrated 2 inch and 2-5/16 inch balls
8.48 kg aluminum
Pros
- Light aluminum build saves weight versus iron
- 1 inch drop and rise steps
- Milled rounded corners ease installation

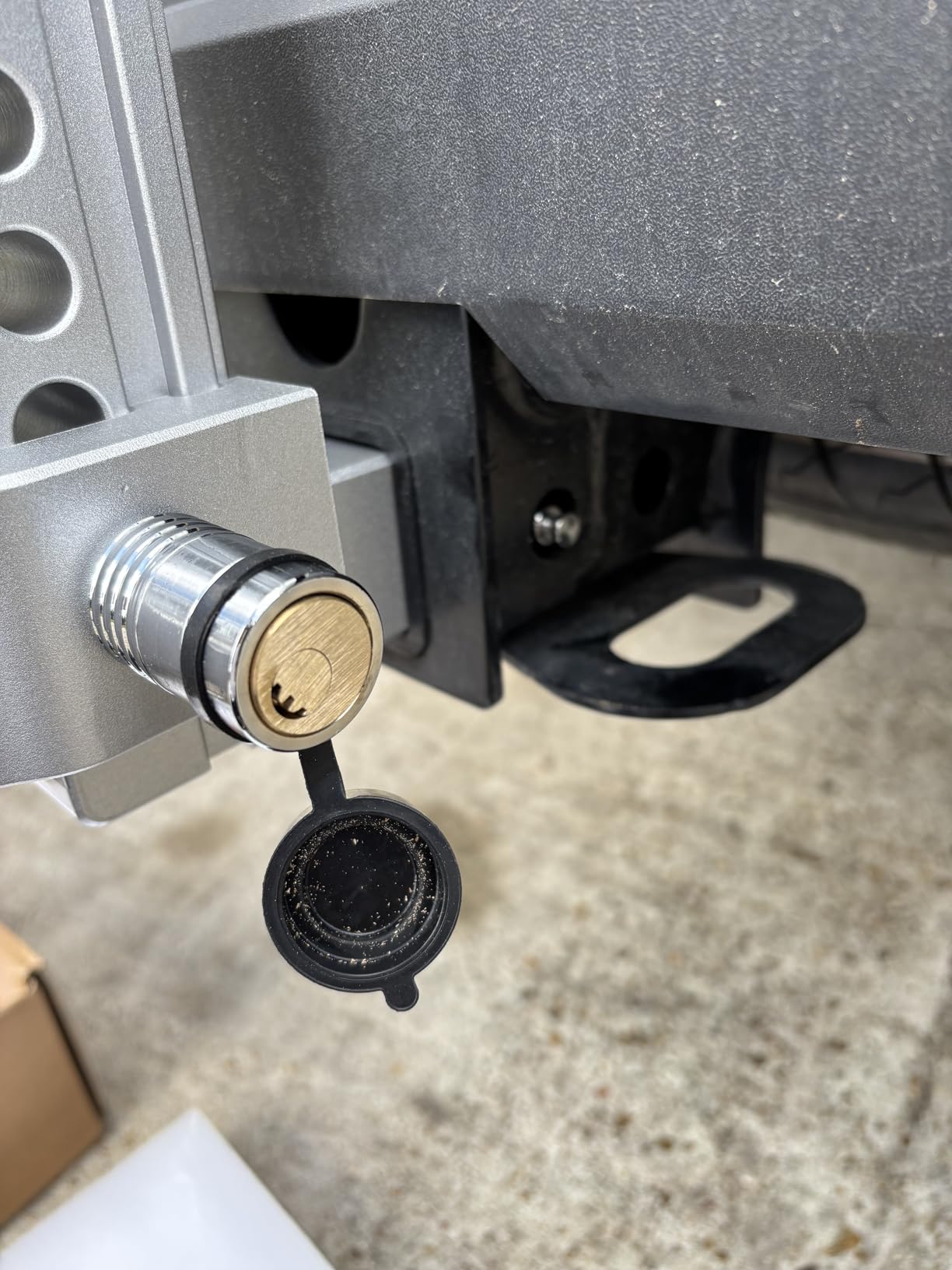

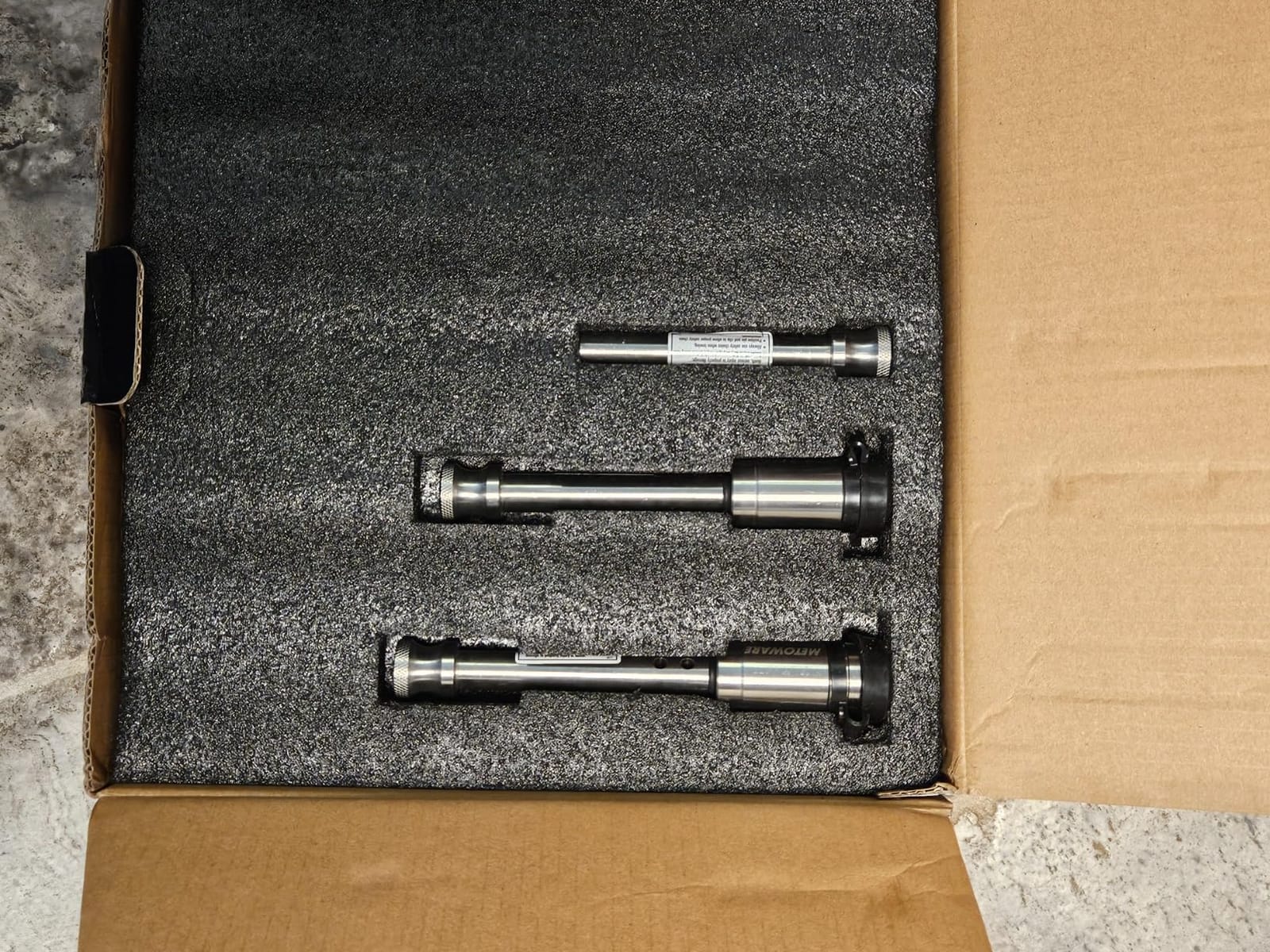

- Two keyed-alike locks with four keys
- Extra O-rings and spare cotter pin included
Cons
- Included locks are described as easy to pick or pop
- Receiver pin is longer than needed on some receivers
- Square rubber anti-rattle rings not included

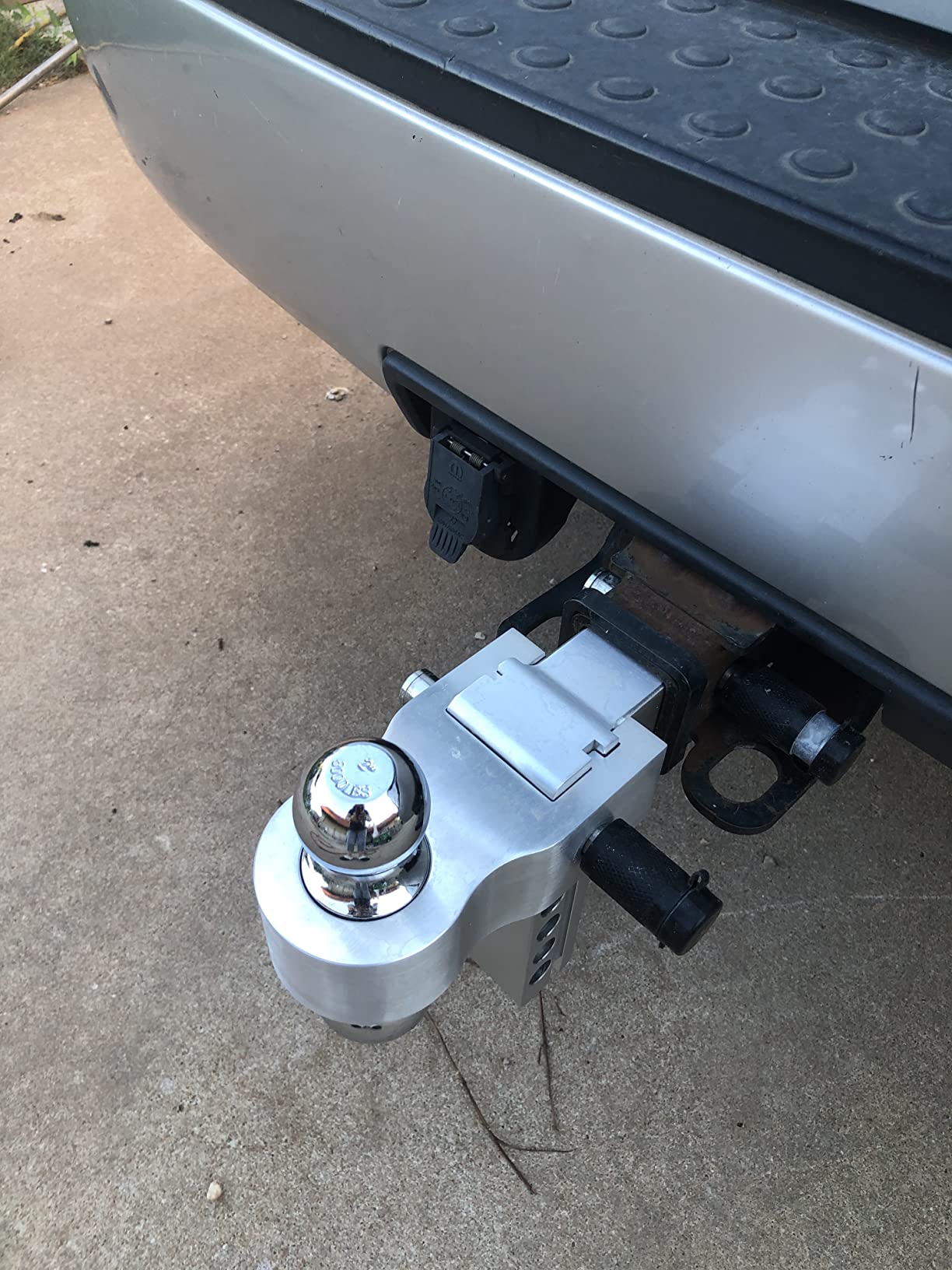

This is the aluminum counterpart to the Koerdo, and it weighs 8.48 kg against 30 pounds of steel. For a half-ton with a 2 inch receiver and a 4 inch lift, that weight difference is the whole conversation, because you are lifting the hitch into a receiver that is now well above knee height.
Reviewers compare the machining favorably to premium hitches and note the aluminum build saves real weight without feeling flimsy in the hand. Bush-camp users single out the on-the-fly height adjustment as the feature they use most.
Six inches of drop and rise in one-inch increments handles varying trailer bed heights well, and the dual 2 inch and 2-5/16 inch balls give you both common coupler sizes without a second mount.
The unit tucks away neatly in a truck bed when it is not in use, and the rounded milled corners help it slide into a tight receiver opening without forcing or chipping the receiver edges.
Who this hitch suits
Half-ton owners with a 2 inch receiver who want adjustable height without carrying a heavy steel unit. It suits campers, ATVs and UTVs as well as small trailers, and the included spare cotter pin and extra O-rings are a genuinely thoughtful kit.
If you store the hitch outside or tow through winter road salt, aluminum is the better choice for corrosion reasons alone.
Who should skip it
Owners who care most about security. The included locks are the most consistent criticism across reviews, described as easy to pick or pop, and several owners replace them outright. Budget for a set of higher-quality keyed locks if theft is a real concern near you.
Buyers with deep receivers may also find the supplied pin longer than needed. The structural rating of 14,000 lb is solid for a half-ton but well short of what a three-quarter-ton owner might need.
How to Measure the Drop You Actually Need
Before anything else, get the two measurements that end all guessing. Measure from the ground to the top of your receiver tube opening, then measure from the ground to the center of your trailer coupler where the ball sits. Subtract the coupler height from the receiver height and the answer is your drop.
Do the measurement with the trailer hitched and the tongue fully loaded, not empty. A loaded tongue sits noticeably lower, and sizing on an empty coupler is the single most common reason owners end up buying a second hitch.
Add roughly one inch of extra drop to whatever the measurement gives you if you expect to raise your lift height later, and treat that as headroom rather than a target. The most common regret reported on towing forums is buying a maximum-depth hitch for a barely lifted truck, then losing ground clearance every time the ball passes a driveway lip or a boat ramp.
Here is the conversion most owners are looking for, based on how lift height moves the receiver:
Level or minimal lift (0 to 2 inch): 2 inches of drop is usually enough to correct a slightly high hitch.
4 inch lift: about 4 inches of drop. The 6 inch units here cover this with a position to spare.
6 inch lift: 6 inches of drop as a minimum, and 7 to 8 inches if your coupler runs low. The 7 inch Geteen and 10 inch Rhino USA both suit this range.
8 inch lift: 8 to 10 inches of drop, assuming a Class 5 2.5 inch receiver sitting in the 24 to 26 inch range off the ground.
10 inch and taller lifts: check with the hitch manufacturer before ordering, since you will need a deep-drop unit and the ball may sit close to your usable breakover angle.
Receiver size decides compatibility. Half-tons and many light-duty trucks use 2 inch receivers. Three-quarter-tons and one-tons, including Ram 2500 and 3500, Silverado 2500 HD and pre-2015 F-250 and F-350, use 2.5 inch receivers. An adjustable hitch built for one size will not fit the other, and the receiving opening is the only thing that tells you which you have.
Steel or aluminum is the last decision. Steel is heavier and stiffer, resists fatigue better under constant maximum-load towing, and shrugs off abuse. Aluminum saves roughly half the weight, never rusts, and is easier to put in and take out. For a half-ton towing lighter trailers, aluminum is the practical pick. For constant heavy hauling, steel earns its weight.
Ground Clearance, Tailgate Clearance and Towing Safety
Tailgate interference is the concern owners raise most often, and it deserves a real answer. A MultiPro tailgate or a Ford swing gate hangs lower and further back than a standard tailgate, and a deep-drop ball mount can hit it when the tailgate is partly closed or while you are loading.
The mitigation is straightforward. Fold or remove the tailgate before you tow with a deep drop, and check your swing gate in the fully open position before the first trip rather than discovering the problem in a parking lot. An owner on a Chevy and GMC forum thread called this out as a safety issue specifically after moving from a 2 inch drop on an unlifted truck to a lifted one.
Ground clearance follows the same logic in reverse. More drop means a lower ball, and the ball is often the lowest point under the rear bumper. If you tow on steep driveways, boat ramps, rocky trails or washboard roads, factor in the 6 to 10 inches of extra depth you are adding rather than ignoring it.
Understand what the ratings actually mean. Gross trailer weight is the loaded trailer, tongue weight is the downward force at the ball, and payload is everything in and on the truck including passengers and the hitch itself. A deep hitch adds weight low and behind the axle, which eats into payload, so if you tow near the truck’s ceiling the hitch depth matters.
A drop hitch does not replace a weight distribution hitch. A drop ball mount corrects height so the trailer tracks level, which reduces sway and improves braking. A weight distribution hitch spreads tongue weight across the truck’s axle and is required by most trailers above roughly 5,000 to 7,000 lb. If your trailer requires one, you will use it in place of a drop ball mount entirely, not alongside it.
Finally, trust the manufacturer over the review page. Towing forum consensus is clear that weight ratings on budget marketplace ball mounts are often optimistic. Match the published GTW to your truck’s actual tow rating and buy the strongest hitch your trailer needs, not the strongest one you can find.
Frequently Asked Questions
Do I need a drop hitch for a lifted truck?
If your trailer tracks level without one, you do not. The moment your hitch receiver sits higher than your trailer coupler, the trailer tows nose-high, which loads the rear axle harder, reduces stability and cuts ground clearance. Measure receiver height minus coupler height and buy that much drop.
What size drop hitch do I need for a 6 inch lift?
Six inches of drop is the minimum for a 6 inch lift, and 7 to 8 inches is safer if your coupler rides low. Most adjustable units in this roundup give 6 inches, so a 6 inch lift on a Class 5 receiver often means moving up to a 7 inch or 10 inch model.
How do I measure the drop on a receiver hitch?
Measure from the ground to the top of your receiver tube, then measure from the ground to the center of your trailer coupler. Subtract the coupler height from the receiver height. Do it with the tongue loaded, not empty, because a loaded tongue sits noticeably lower than an empty one.
Will a deep drop hitch hit the ground or my tailgate?
It can. Deep drop units put the ball at the lowest point under the rear bumper, so steep driveways, boat ramps and off-road obstacles become real hazards. On a MultiPro tailgate or Ford swing gate, fold or remove the tailgate before towing and verify clearance with the gate fully open.
Do I still need a weight distribution hitch if I have a drop hitch?
A drop hitch and a weight distribution hitch do different jobs. A drop ball mount levels the trailer to reduce sway. A weight distribution hitch spreads tongue weight across the truck axle and is required by most trailers above roughly 5,000 to 7,000 lb, replacing the ball mount rather than working with it.
Which Adjustable Drop Hitch Should You Buy
For most lifted trucks, the B&W Tow & Stow is the pick that balances drop range, tri-ball versatility, a rotating stow-away design and a lifetime warranty. If you run a deep lift and need maximum drop, choose the Rhino USA 10 inch unit. If you haul constantly and want the highest published rating, the Gen-Y Mega-Duty is built for it. Half-ton owners on 2 inch receivers should look at the Koerdo for capacity or the METOWARE aluminum model for weight.
Whatever you choose, measure first, buy one inch more drop than you strictly need if a future lift is planned, and confirm the receiver size before anything ships to your driveway. Those three steps prevent almost every complaint we found in owner feedback on these hitches.
